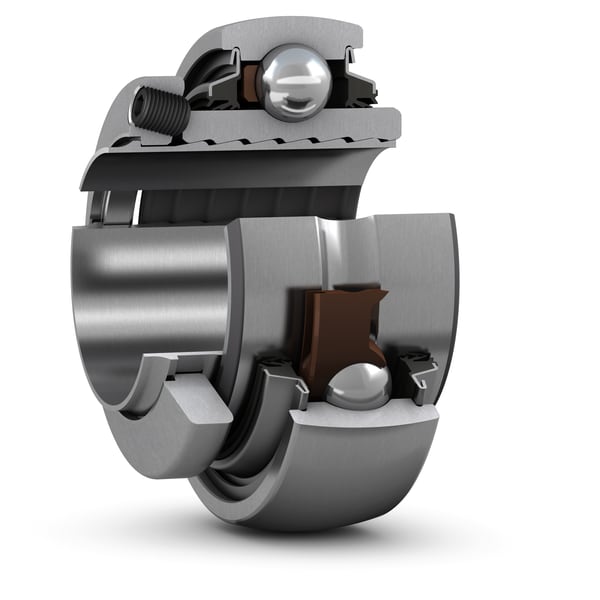

SKF YSP209SB-2DW/AG Insert bearing (YAR / YET / YSA / YEL)

SKF YSP209SB-2DW/AG insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.

Type

Insert bearing (YAR / YET / YSA / YEL)

Designation

SKF YSP209SB-2DW/AG

HS code

8482.10

Shaft diameter

45 mm

Bore diameter

46.66 mm

Outside diameter

85 mm

Width, total

44.2 mm

Width, inner ring

35 mm

Width, outer ring

22 mm

Basic dynamic load rating

33.2 kN

Basic static load rating

21.6 kN

Limiting speed

850 r/min

Retaining feature, inner ring

SKF ConCentra

Bore type

Cylindrical

Rolling elements

Balls

Outer ring type

Spherical

Inner ring extension

Symmetrically on both sides

Cage

Non-metallic

Rubber seating ring

Without

Material, bearing

Bearing steel

Coating

Without

Sealing

Seal on both sides

Sealing type

Contact, 5-lip

Lubricant

Grease

Relubrication feature

Without

Product net weight

0.63 kg

eClass code

23-05-08-02

UNSPSC code

31171536

Standard

SKF designation convention (see description for governing ISO / DIN)

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.10

• NTN 2092
• NSK 2092
• FAG 2092
• Koyo 2092
• ASAHI 2092
• Equivalent: 2092 (NTN)
• Equivalent: 2092 (NSK)
• Equivalent: 2092 (FAG)
• Equivalent: 2092 (Koyo)
• Equivalent: 2092 (ASAHI)
