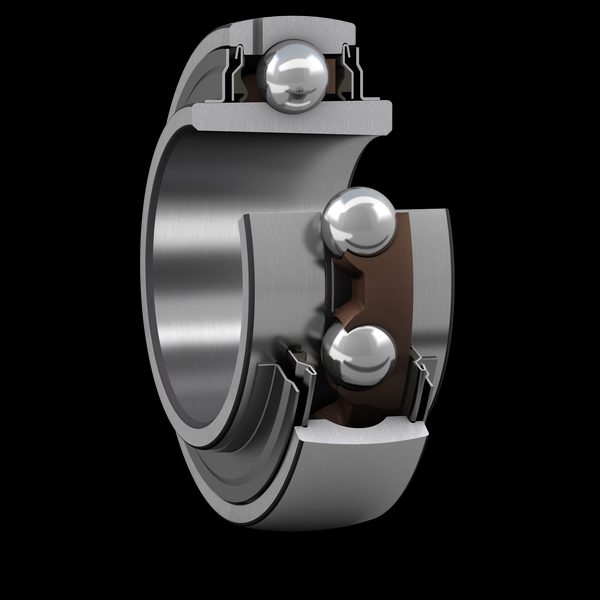

SKF YSA213-2FK Insert bearing (YAR / YET / YSA / YEL)

SKF YSA213-2FK insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.

Type

Insert bearing (YAR / YET / YSA / YEL)

Designation

SKF YSA213-2FK

HS code

8482.10

Shaft diameter

60 mm

Bore diameter

65 mm

Outside diameter

120 mm

Width, total

43.5 mm

Width, inner ring

43.5 mm

Width, outer ring

27 mm

Basic dynamic load rating

57.2 kN

Basic static load rating

40 kN

Limiting speed

3000 r/min

Retaining feature, inner ring

Adapter sleeve

Bore type

Tapered

Rolling elements

Balls

Outer ring type

Spherical

Inner ring extension

Symmetrically on both sides

Cage

Non-metallic

Rubber seating ring

Without

Material, bearing

Bearing steel

Coating

Without

Sealing

Seal and flinger on both sides

Sealing type

Contact, standard

Lubricant

Grease

Relubrication feature

With

Product net weight

1.31 kg

eClass code

23-05-08-02

UNSPSC code

31171536

Standard

SKF designation convention (see description for governing ISO / DIN)

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.10

• NTN 2132
• NSK 2132
• FAG 2132
• Koyo 2132
• ASAHI 2132
• Equivalent: 2132 (NTN)
• Equivalent: 2132 (NSK)
• Equivalent: 2132 (FAG)
• Equivalent: 2132 (Koyo)
• Equivalent: 2132 (ASAHI)
