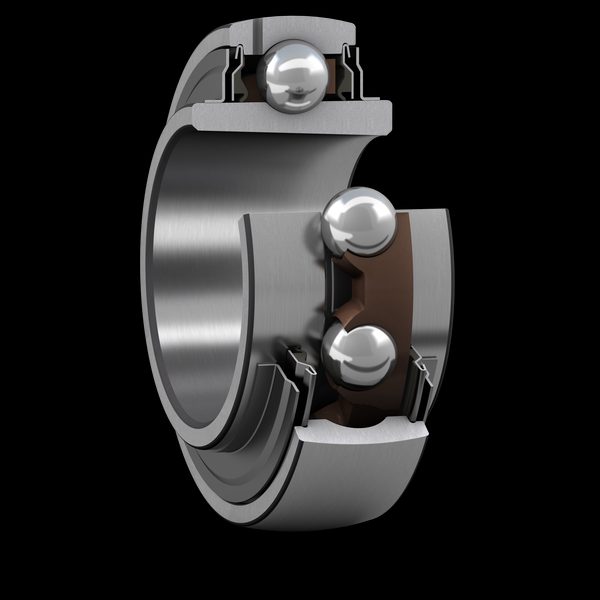

SKF YSA212-2FK Insert bearing (YAR / YET / YSA / YEL)

SKF YSA212-2FK insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.

Type

Insert bearing (YAR / YET / YSA / YEL)

Designation

SKF YSA212-2FK

HS code

8482.10

Shaft diameter

55 mm

Bore diameter

60 mm

Outside diameter

110 mm

Width, total

42.5 mm

Width, inner ring

42.5 mm

Width, outer ring

26 mm

Basic dynamic load rating

52.7 kN

Basic static load rating

36 kN

Limiting speed

3400 r/min

Retaining feature, inner ring

Adapter sleeve

Bore type

Tapered

Rolling elements

Balls

Outer ring type

Spherical

Inner ring extension

Symmetrically on both sides

Cage

Non-metallic

Rubber seating ring

Without

Material, bearing

Bearing steel

Coating

Without

Sealing

Seal and flinger on both sides

Sealing type

Contact, standard

Lubricant

Grease

Relubrication feature

With

Product net weight

1.04 kg

eClass code

23-05-08-02

UNSPSC code

31171536

Standard

SKF designation convention (see description for governing ISO / DIN)

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.10

• NTN 2122
• NSK 2122
• FAG 2122
• Koyo 2122
• ASAHI 2122
• Equivalent: 2122 (NTN)
• Equivalent: 2122 (NSK)
• Equivalent: 2122 (FAG)
• Equivalent: 2122 (Koyo)
• Equivalent: 2122 (ASAHI)
