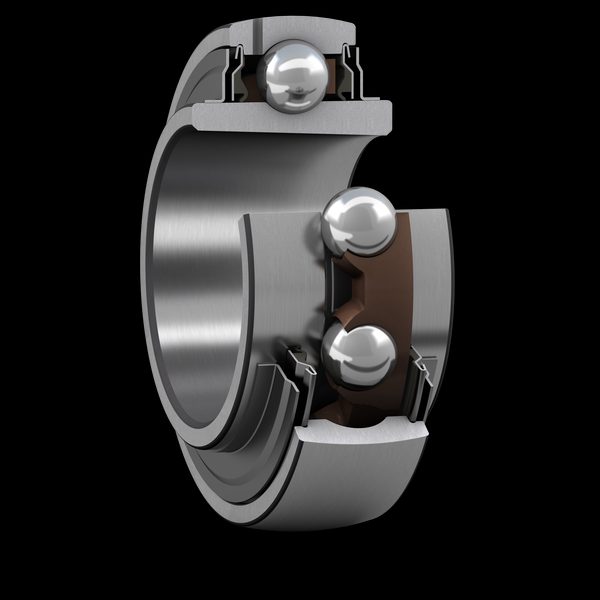

SKF YSA211-2FK Insert bearing (YAR / YET / YSA / YEL)

SKF YSA211-2FK insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.

Type

Insert bearing (YAR / YET / YSA / YEL)

Designation

SKF YSA211-2FK

HS code

8482.10

Shaft diameter

50 mm

Bore diameter

55 mm

Outside diameter

100 mm

Width, total

40 mm

Width, inner ring

40 mm

Width, outer ring

25 mm

Basic dynamic load rating

43.6 kN

Basic static load rating

29 kN

Limiting speed

3600 r/min

Retaining feature, inner ring

Adapter sleeve

Bore type

Tapered

Rolling elements

Balls

Outer ring type

Spherical

Inner ring extension

Symmetrically on both sides

Cage

Non-metallic

Rubber seating ring

Without

Material, bearing

Bearing steel

Coating

Without

Sealing

Seal and flinger on both sides

Sealing type

Contact, standard

Lubricant

Grease

Relubrication feature

With

Product net weight

0.802 kg

eClass code

23-05-08-02

UNSPSC code

31171536

Standard

SKF designation convention (see description for governing ISO / DIN)

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.10

• NTN 2112
• NSK 2112
• FAG 2112
• Koyo 2112
• ASAHI 2112
• Equivalent: 2112 (NTN)
• Equivalent: 2112 (NSK)
• Equivalent: 2112 (FAG)
• Equivalent: 2112 (Koyo)
• Equivalent: 2112 (ASAHI)
