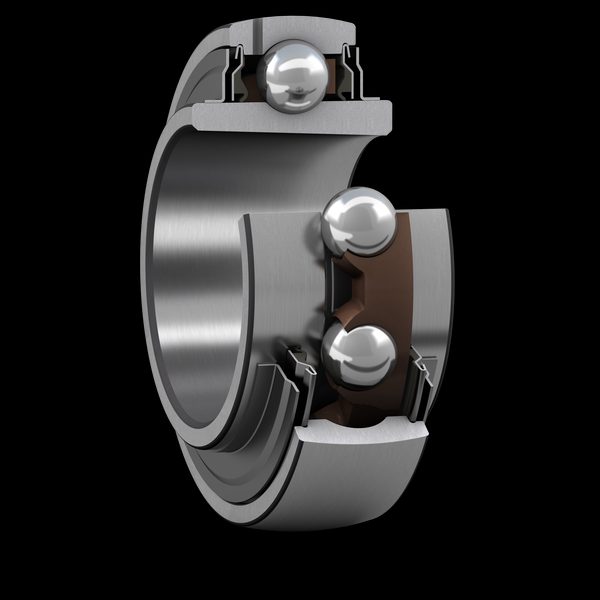

SKF YSA210-2FK Insert bearing (YAR / YET / YSA / YEL)

SKF YSA210-2FK insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.

Type

Insert bearing (YAR / YET / YSA / YEL)

Designation

SKF YSA210-2FK

HS code

8482.10

Shaft diameter

45 mm

Bore diameter

50 mm

Outside diameter

90 mm

Width, total

37 mm

Width, inner ring

37 mm

Width, outer ring

22 mm

Basic dynamic load rating

35.1 kN

Basic static load rating

23.2 kN

Limiting speed

4000 r/min

Retaining feature, inner ring

Adapter sleeve

Bore type

Tapered

Rolling elements

Balls

Outer ring type

Spherical

Inner ring extension

Symmetrically on both sides

Cage

Non-metallic

Rubber seating ring

Without

Material, bearing

Bearing steel

Coating

Without

Sealing

Seal and flinger on both sides

Sealing type

Contact, standard

Lubricant

Grease

Relubrication feature

With

Product net weight

0.59 kg

eClass code

23-05-08-02

UNSPSC code

31171536

Standard

SKF designation convention (see description for governing ISO / DIN)

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.10

• NTN 2102
• NSK 2102
• FAG 2102
• Koyo 2102
• ASAHI 2102
• Equivalent: 2102 (NTN)
• Equivalent: 2102 (NSK)
• Equivalent: 2102 (FAG)
• Equivalent: 2102 (Koyo)
• Equivalent: 2102 (ASAHI)
