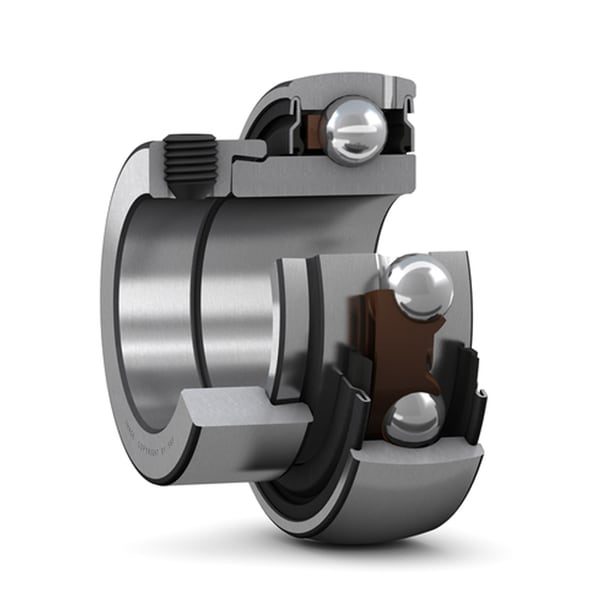

SKF YET205-014W Insert bearing (YAR / YET / YSA / YEL)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF YET205-014W insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.
Technical Specifications
- Type
- Insert bearing (YAR / YET / YSA / YEL)
- Designation
- SKF YET205-014W
- HS code
- 8482.10
- Shaft diameter
- 22.225 mm
- Bore diameter
- 22.225 mm
- Outside diameter
- 52 mm
- Width, total
- 31 mm
- Width, inner ring
- 21.5 mm
- Width, outer ring
- 15 mm
- Basic dynamic load rating
- 14 kN
- Basic static load rating
- 7.8 kN
- Limiting speed
- 7000 r/min
- Note
- Limiting speed with shaft tolerance h6
- Retaining feature, inner ring
- Eccentric collar
- Bore type
- Cylindrical
- Rolling elements
- Balls
- Outer ring type
- Spherical
- Inner ring extension
- On one side
- Cage
- Non-metallic
- Rubber seating ring
- Without
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Seal on both sides
- Sealing type
- Contact, standard
- Lubricant
- Grease
- Relubrication feature
- Without
- Product net weight
- 0.212 kg
- eClass code
- 23-05-08-02
- UNSPSC code
- 31171536
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.10
Cross References
- NTN 205014
- NSK 205014
- FAG 205014
- Koyo 205014
- ASAHI 205014
- Equivalent: 205014 (NTN)
- Equivalent: 205014 (NSK)
- Equivalent: 205014 (FAG)
- Equivalent: 205014 (Koyo)
- Equivalent: 205014 (ASAHI)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF FRB2/62 Bearing housing accessory
SKF
SKF 7009ACE/HCP4ALDGA Super-precision angular contact ball bearing
SKF
SKF MD80X66X22.5-L Hydraulic piston seal
SKF
SKF SAF218 Split pillow-block housing (SNL / SAF / SAW)
SKF
SKF PTB-70X80X13.2-J1S Hydraulic rod seal / buffer seal
SKF
SKF SNW115X2.1/2 Adapter sleeve
SKF
SKF KDN.KA025XP0A Thin-section ball bearing (Reali-Slim)
SKF
SKF PWM11012540 Plain sleeve bushing
Technical guides
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy YET205-014W?
- YET205-014W can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is YET205-014W.
- What is the HS code for YET205-014W?
- The customs tariff (HS) code for YET205-014W is 8482.10.
- Who manufactures YET205-014W?
- YET205-014W is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for YET205-014W?
- Yes — the YET205-014W datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for YET205-014W?
- The minimum order quantity is 1.
- Is YET205-014W available?
- Yes — YET205-014W is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
