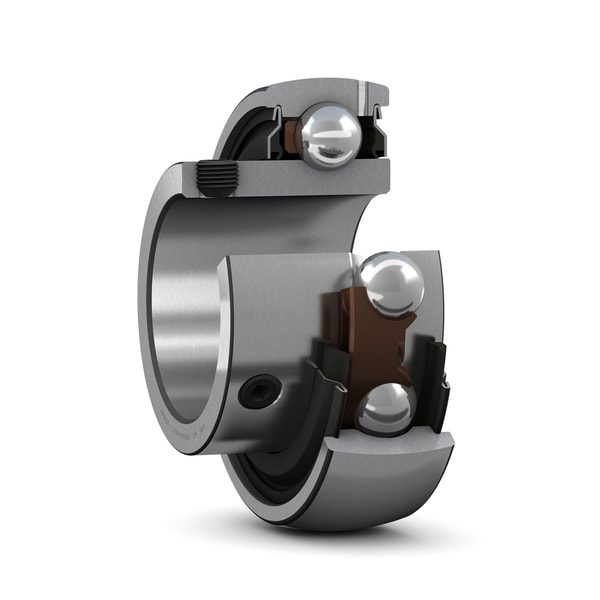

SKF YAT207-106 Insert bearing (YAR / YET / YSA / YEL)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF YAT207-106 insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.
Technical Specifications
- Type
- Insert bearing (YAR / YET / YSA / YEL)
- Designation
- SKF YAT207-106
- HS code
- 8482.10
- Shaft diameter
- 34.925 mm
- Bore diameter
- 34.925 mm
- Outside diameter
- 72 mm
- Width, total
- 33 mm
- Width, inner ring
- 33 mm
- Width, outer ring
- 19 mm
- Basic dynamic load rating
- 25.5 kN
- Basic static load rating
- 15.3 kN
- Limiting speed
- 5300 r/min
- Note
- Limiting speed with shaft tolerance h6
- Retaining feature, inner ring
- Set screws
- Bore type
- Cylindrical
- Rolling elements
- Balls
- Outer ring type
- Spherical
- Inner ring extension
- On one side
- Cage
- Non-metallic
- Rubber seating ring
- Without
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Seal on both sides
- Sealing type
- Contact, standard
- Lubricant
- Grease
- Relubrication feature
- With
- Product net weight
- 0.386 kg
- eClass code
- 23-05-08-02
- UNSPSC code
- 31171536
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.10
Cross References
- NTN 207106
- NSK 207106
- FAG 207106
- Koyo 207106
- ASAHI 207106
- Equivalent: 207106 (NTN)
- Equivalent: 207106 (NSK)
- Equivalent: 207106 (FAG)
- Equivalent: 207106 (Koyo)
- Equivalent: 207106 (ASAHI)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF MRC.5314CFF Double-row angular contact ball bearing
SKF
SKF FRB10/80 Bearing housing accessory
SKF
SKF PWB115X127.2X7.1 Hydraulic rod wiper seal
SKF
SKF 7008CD/P4ADBA Super-precision angular contact ball bearing
SKF
SKF MD150X128X26.5-L Hydraulic piston seal
SKF
SKF SAF044KAX8 Split pillow-block housing (SNL / SAF / SAW)
SKF
SKF PTB-48X63X11.2-J1S Hydraulic rod seal / buffer seal
SKF
SKF SNP3052X9.7/16 Adapter sleeve
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy YAT207-106?
- YAT207-106 can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is YAT207-106.
- What is the HS code for YAT207-106?
- The customs tariff (HS) code for YAT207-106 is 8482.10.
- Who manufactures YAT207-106?
- YAT207-106 is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for YAT207-106?
- Yes — the YAT207-106 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for YAT207-106?
- The minimum order quantity is 1.
- Is YAT207-106 available?
- Yes — YAT207-106 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
