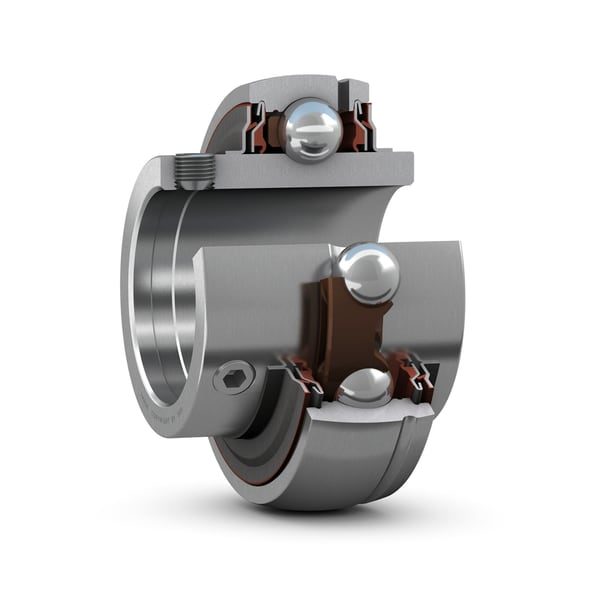

SKF YAR207-2RF/VE495 Insert bearing (YAR / YET / YSA / YEL)

SKF YAR207-2RF/VE495 insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.

Type

Insert bearing (YAR / YET / YSA / YEL)

Designation

SKF YAR207-2RF/VE495

Bore d

35 mm

HS code

8482.10

Shaft diameter

35 mm

Bore diameter

35 mm

Outside diameter

72 mm

Width, total

42.9 mm

Width, inner ring

42.9 mm

Width, outer ring

19 mm

Basic dynamic load rating

25.5 kN

Basic static load rating

15.3 kN

Limiting speed

3200 r/min

Note

Limiting speed with shaft tolerance h6

Retaining feature, inner ring

Set screws

Bore type

Cylindrical

Rolling elements

Balls

Outer ring type

Spherical

Inner ring extension

On both sides

Cage

Non-metallic

Rubber seating ring

Without

Material, bearing

Bearing steel

Coating

Zinc-coated rings

Sealing

Seal and flinger on both sides

Sealing type

Contact, multiple

Lubricant

Grease

Relubrication feature

With

Product net weight

0.442 kg

Standard

SKF designation convention (see description for governing ISO / DIN)

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.10

• NTN 2072495
• NSK 2072495
• FAG 2072495
• Koyo 2072495
• ASAHI 2072495
• Equivalent: 2072495 (NTN)
• Equivalent: 2072495 (NSK)
• Equivalent: 2072495 (FAG)
• Equivalent: 2072495 (Koyo)
• Equivalent: 2072495 (ASAHI)
