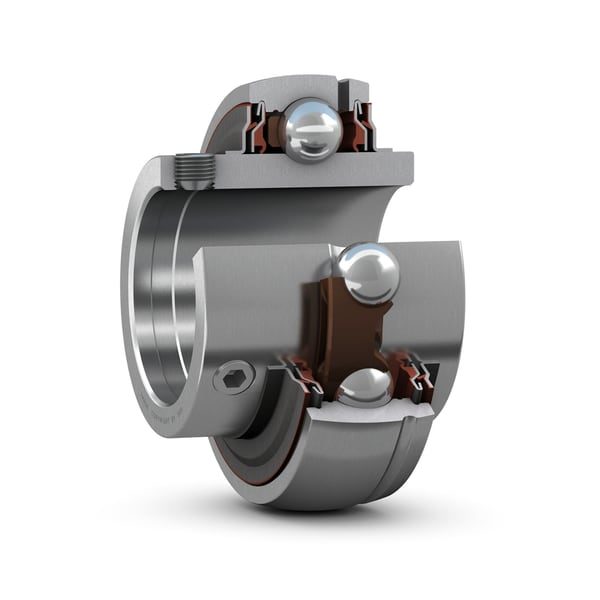

SKF YAR207-106-2RFGR/HV Insert bearing (YAR / YET / YSA / YEL)

SKF YAR207-106-2RFGR/HV insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.

Type

Insert bearing (YAR / YET / YSA / YEL)

Designation

SKF YAR207-106-2RFGR/HV

HS code

8482.10

Shaft diameter

34.925 mm

Bore diameter

34.925 mm

Outside diameter

72 mm

Width, total

42.9 mm

Width, inner ring

42.9 mm

Width, outer ring

19 mm

Basic dynamic load rating

21.6 kN

Basic static load rating

15.3 kN

Limiting speed

3200 r/min

Note

Limiting speed with shaft tolerance h6

Retaining feature, inner ring

Set screws

Bore type

Cylindrical

Rolling elements

Balls

Outer ring type

Spherical

Inner ring extension

On both sides

Cage

Non-metallic

Rubber seating ring

Without

Material, bearing

Stainless steel

Coating

Without

Sealing

Seal and flinger on both sides

Sealing type

Contact, multiple

Lubricant

Grease

Relubrication feature

With

Product net weight

0.443 kg

eClass code

23-05-08-02

UNSPSC code

31171536

Standard

SKF designation convention (see description for governing ISO / DIN)

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.10

• NTN 2071062
• NSK 2071062
• FAG 2071062
• Koyo 2071062
• ASAHI 2071062
• Equivalent: 2071062 (NTN)
• Equivalent: 2071062 (NSK)
• Equivalent: 2071062 (FAG)
• Equivalent: 2071062 (Koyo)
• Equivalent: 2071062 (ASAHI)
