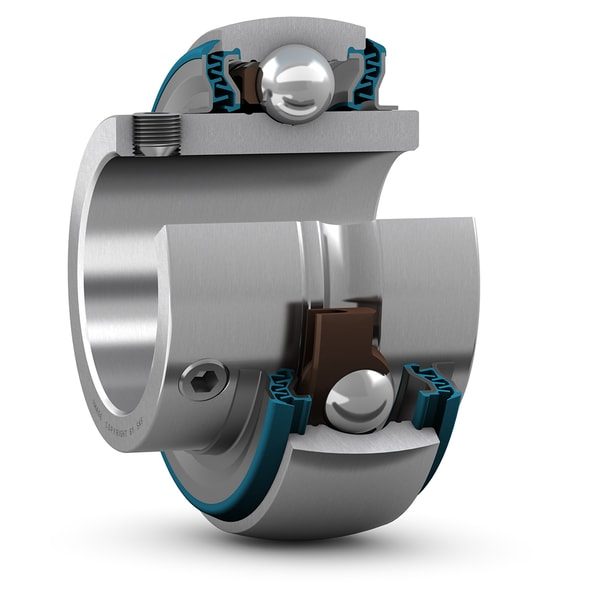

SKF YAR207-106-2LPW/SS Insert bearing (YAR / YET / YSA / YEL)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF YAR207-106-2LPW/SS insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.
Technical Specifications
- Type
- Insert bearing (YAR / YET / YSA / YEL)
- Designation
- SKF YAR207-106-2LPW/SS
- HS code
- 8482.10
- Shaft diameter
- 34.925 mm
- Bore diameter
- 34.925 mm
- Outside diameter
- 72 mm
- Width, total
- 42.9 mm
- Width, inner ring
- 42.9 mm
- Width, outer ring
- 19 mm
- Basic dynamic load rating
- 21.6 kN
- Basic static load rating
- 15.3 kN
- Limiting speed
- 3200 r/min
- Note
- Limiting speed with shaft tolerance h6
- Retaining feature, inner ring
- Set screws
- Bore type
- Cylindrical
- Rolling elements
- Balls
- Outer ring type
- Spherical
- Inner ring extension
- On both sides
- Cage
- Non-metallic
- Rubber seating ring
- Without
- Material, bearing
- Stainless steel
- Coating
- Without
- Sealing
- Seal and flinger on both sides
- Sealing type
- Contact, gutter
- Lubricant
- Grease
- Relubrication feature
- Without
- Product net weight
- 0.45 kg
- eClass code
- 23-05-08-02
- UNSPSC code
- 31171536
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.10
Cross References
- NTN 2071062
- NSK 2071062
- FAG 2071062
- Koyo 2071062
- ASAHI 2071062
- Equivalent: 2071062 (NTN)
- Equivalent: 2071062 (NSK)
- Equivalent: 2071062 (FAG)
- Equivalent: 2071062 (Koyo)
- Equivalent: 2071062 (ASAHI)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
