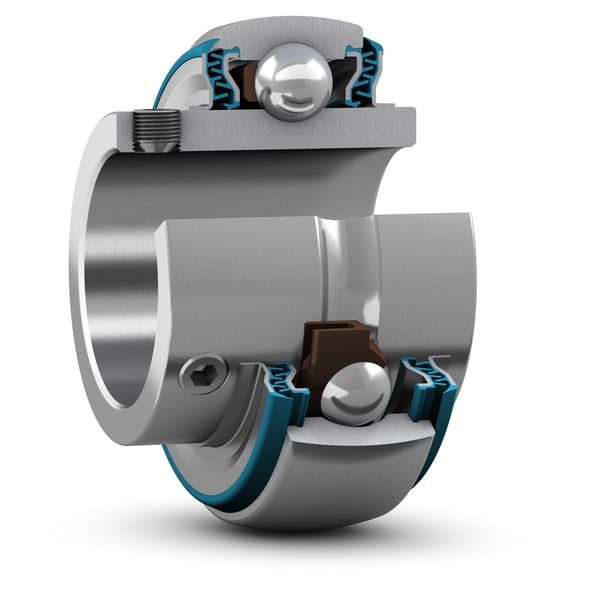

SKF YAR206-104-2LPW/ZM Insert bearing (YAR / YET / YSA / YEL)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF YAR206-104-2LPW/ZM insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.
Technical Specifications
- Type
- Insert bearing (YAR / YET / YSA / YEL)
- Designation
- SKF YAR206-104-2LPW/ZM
- HS code
- 8482.10
- Shaft diameter
- 31.75 mm
- Bore diameter
- 31.75 mm
- Outside diameter
- 62 mm
- Width, total
- 38.1 mm
- Width, inner ring
- 38.1 mm
- Width, outer ring
- 18 mm
- Basic dynamic load rating
- 19.5 kN
- Basic static load rating
- 11.2 kN
- Limiting speed
- 3800 r/min
- Note
- Limiting speed with shaft tolerance h6
- Retaining feature, inner ring
- Set screws
- Bore type
- Cylindrical
- Rolling elements
- Balls
- Outer ring type
- Spherical
- Inner ring extension
- On both sides
- Cage
- Non-metallic
- Rubber seating ring
- Without
- Material, bearing
- Bearing steel
- Coating
- Zinc-coated rings
- Sealing
- Seal and flinger on both sides
- Sealing type
- Contact, gutter
- Lubricant
- Grease
- Relubrication feature
- Without
- Product net weight
- 0.28 kg
- eClass code
- 23-05-08-02
- UNSPSC code
- 31171536
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.10
Cross References
- NTN 2061042
- NSK 2061042
- FAG 2061042
- Koyo 2061042
- ASAHI 2061042
- Equivalent: 2061042 (NTN)
- Equivalent: 2061042 (NSK)
- Equivalent: 2061042 (FAG)
- Equivalent: 2061042 (Koyo)
- Equivalent: 2061042 (ASAHI)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF ERF909 Bearing housing accessory
SKF
SKF GEZ208ES Radial spherical plain bearing
SKF
SKF PA115X125X7X10 Hydraulic rod wiper seal
SKF
SKF 7007ACDGD/P4A Super-precision angular contact ball bearing
SKF
SKF W40 Bearing lock nut (keyway type)
SKF
SKF LCP-90X75X12.5-ND1 Hydraulic piston seal
SKF
SKF LOR568 Split pillow-block housing (SNL / SAF / SAW)
SKF
SKF PTB-250X270X13.2-J1S Hydraulic rod seal / buffer seal
Technical guides
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy YAR206-104-2LPW/ZM?
- YAR206-104-2LPW/ZM can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is YAR206-104-2LPW/ZM.
- What is the HS code for YAR206-104-2LPW/ZM?
- The customs tariff (HS) code for YAR206-104-2LPW/ZM is 8482.10.
- Who manufactures YAR206-104-2LPW/ZM?
- YAR206-104-2LPW/ZM is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for YAR206-104-2LPW/ZM?
- Yes — the YAR206-104-2LPW/ZM datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for YAR206-104-2LPW/ZM?
- The minimum order quantity is 1.
- Is YAR206-104-2LPW/ZM available?
- Yes — YAR206-104-2LPW/ZM is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
