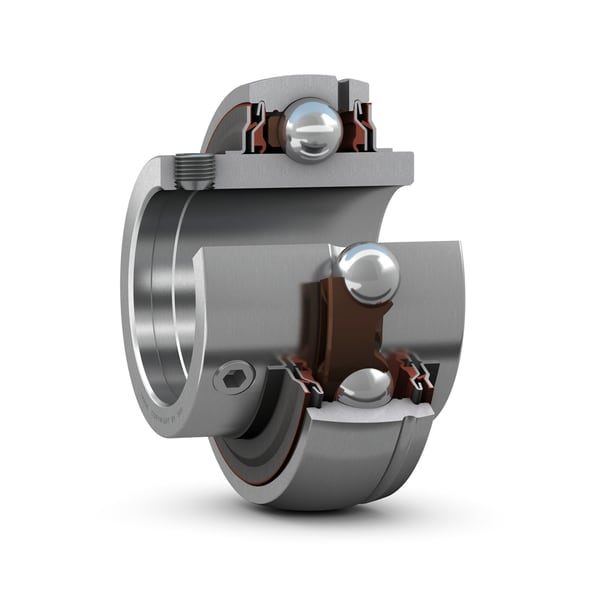

SKF YAR205-100-2RF/HV Insert bearing (YAR / YET / YSA / YEL)

SKF YAR205-100-2RF/HV insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.

Type

Insert bearing (YAR / YET / YSA / YEL)

Designation

SKF YAR205-100-2RF/HV

HS code

8482.10

Shaft diameter

25.4 mm

Bore diameter

25.4 mm

Outside diameter

52 mm

Width, total

34.1 mm

Width, inner ring

34.1 mm

Width, outer ring

15 mm

Basic dynamic load rating

11.9 kN

Basic static load rating

7.8 kN

Limiting speed

4300 r/min

Note

Limiting speed with shaft tolerance h6

Retaining feature, inner ring

Set screws

Bore type

Cylindrical

Rolling elements

Balls

Outer ring type

Spherical

Inner ring extension

On both sides

Cage

Non-metallic

Rubber seating ring

Without

Material, bearing

Stainless steel

Coating

Without

Sealing

Seal and flinger on both sides

Sealing type

Contact, multiple

Lubricant

Grease

Relubrication feature

With

Product net weight

0.18 kg

Standard

SKF designation convention (see description for governing ISO / DIN)

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.10
