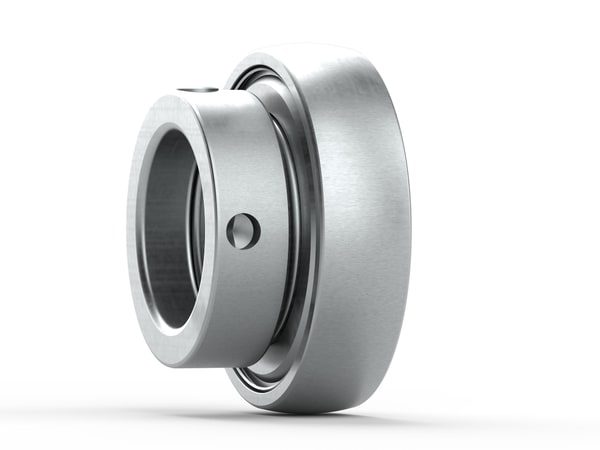

SKF XGRAE55NPPB Insert bearing (YAR / YET / YSA / YEL)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF XGRAE55NPPB insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.
Technical Specifications
- Type
- Insert bearing (YAR / YET / YSA / YEL)
- Designation
- SKF XGRAE55NPPB
- HS code
- 8482.10
- Shaft diameter
- 55 mm
- Bore diameter
- 55 mm
- Outside diameter
- 100 mm
- Width, total
- 48.5 mm
- Width, inner ring
- 32.5 mm
- Width, outer ring
- 25 mm
- Basic dynamic load rating
- 43.4 kN
- Basic static load rating
- 29.2 kN
- Limiting speed
- 3000 r/min
- Retaining feature, inner ring
- Eccentric collar
- Bore type
- Cylindrical
- Rolling elements
- Balls
- Outer ring type
- Spherical
- Rubber seating ring
- Without
- Material, bearing
- Bearing steel
- Coating
- Zinc-coated rings
- Sealing
- Seal on both sides
- Sealing type
- Contact, Agri narrow single lip
- Lubricant
- Grease
- Relubrication feature
- Without
- Product net weight
- 1.05 kg
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.10
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF ERF809 Bearing housing accessory
SKF
SKF GEP220FS Radial spherical plain bearing
SKF
SKF MCW-63X78X9-E6Q Hydraulic rod wiper seal
SKF
SKF 7006CE/HCP4A Super-precision angular contact ball bearing
SKF
SKF RN38 Bearing lock nut (keyway type)
SKF
SKF GS35X46X4.2-AD1 Hydraulic piston seal
SKF
SKF LOR175 Split pillow-block housing (SNL / SAF / SAW)
SKF
SKF PTB-200X225X16.5-J1S Hydraulic rod seal / buffer seal
Technical guides
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XGRAE55NPPB?
- XGRAE55NPPB can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is XGRAE55NPPB.
- What is the HS code for XGRAE55NPPB?
- The customs tariff (HS) code for XGRAE55NPPB is 8482.10.
- Who manufactures XGRAE55NPPB?
- XGRAE55NPPB is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for XGRAE55NPPB?
- Yes — the XGRAE55NPPB datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XGRAE55NPPB?
- The minimum order quantity is 1.
- Is XGRAE55NPPB available?
- Yes — XGRAE55NPPB is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
