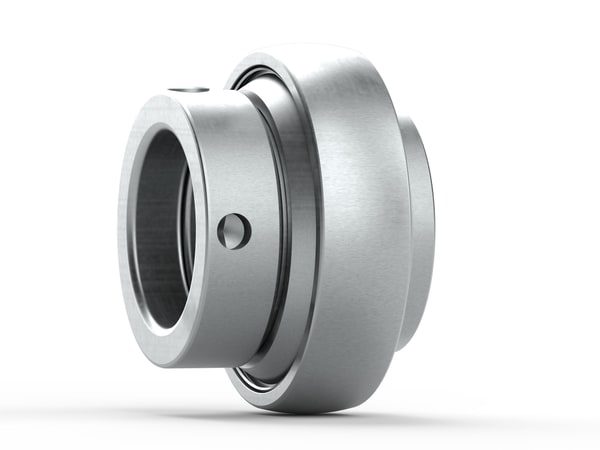

SKF XGGE20KRRB Insert bearing (YAR / YET / YSA / YEL)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF XGGE20KRRB insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.
Technical Specifications
- Type
- Insert bearing (YAR / YET / YSA / YEL)
- Designation
- SKF XGGE20KRRB
- HS code
- 8482.10
- Shaft diameter
- 20 mm
- Bore diameter
- 20 mm
- Outside diameter
- 47 mm
- Width, total
- 43.5 mm
- Width, inner ring
- 34 mm
- Width, outer ring
- 15 mm
- Basic dynamic load rating
- 12.8 kN
- Basic static load rating
- 6.65 kN
- Limiting speed
- 3000 r/min
- Retaining feature, inner ring
- Eccentric collar
- Bore type
- Cylindrical
- Rolling elements
- Balls
- Outer ring type
- Spherical
- Rubber seating ring
- Without
- Material, bearing
- Bearing steel
- Coating
- Zinc-coated rings
- Sealing
- Seal on both sides
- Sealing type
- Contact, Agri wide single lip
- Lubricant
- Grease
- Relubrication feature
- With
- Product net weight
- 0.188 kg
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.10
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF ER414 Bearing housing accessory
SKF
SKF GEH70ES-2RS Radial spherical plain bearing
SKF
SKF MCW-1875-H9B Hydraulic rod wiper seal
SKF
SKF 7006ACD/P4ADGC Super-precision angular contact ball bearing
SKF
SKF N500 Bearing lock nut (keyway type)
SKF
SKF GH4A-9500-AD1 Hydraulic piston seal
SKF
SKF LOR134 Split pillow-block housing (SNL / SAF / SAW)
SKF
SKF PTB-14X21X5.1-J1S Hydraulic rod seal / buffer seal
Technical guides
- SKF 81xxx Cylindrical Roller Thrust Bearing — Dimensions, Load Ratings & Interchange (81102 to 81140)
- SKF Deep Groove Ball Bearing Reference — 6000 / 6200 / 6300 / 6400 Series (Dimensions, Load Ratings, Interchange to FAG NSK NTN Timken)
- Bearing Induction Heaters — Why Heat Beats Force, the 110 °C Rule and SKF TIH/TWIM/TMHN
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XGGE20KRRB?
- XGGE20KRRB can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is XGGE20KRRB.
- What is the HS code for XGGE20KRRB?
- The customs tariff (HS) code for XGGE20KRRB is 8482.10.
- Who manufactures XGGE20KRRB?
- XGGE20KRRB is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for XGGE20KRRB?
- Yes — the XGGE20KRRB datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XGGE20KRRB?
- The minimum order quantity is 1.
- Is XGGE20KRRB available?
- Yes — XGGE20KRRB is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
