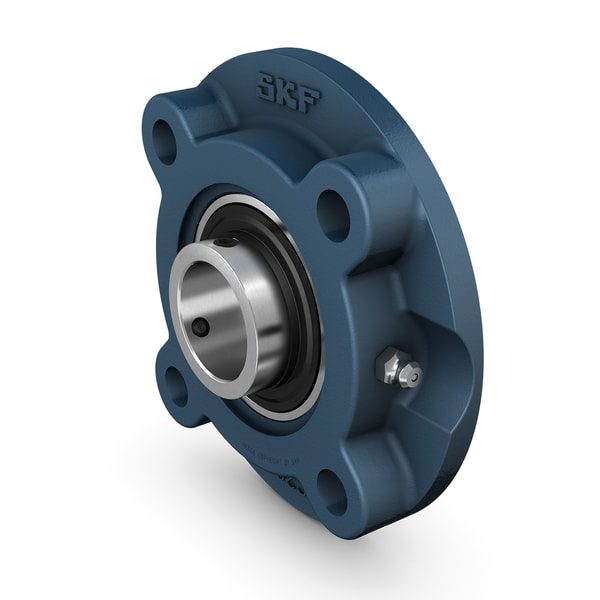

SKF UCFC210/H Flanged ball bearing unit (UCF / UCFC / UCFL)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF UCFC210/H flanged ball bearing unit (ucf / ucfc / ucfl). Square four-bolt (UCF), round three-bolt (UCFC) or oval two-bolt (UCFL) flanged housing pre-assembled with a spherical-outer-ring insert bearing. Absorbs shaft-to-housing misalignment on assembly. Set-screw shaft attachment on standard UC-series insert; eccentric-collar (UEL) or adapter-sleeve (UK) variants available. Dimensioned to ISO 3228 / DIN 626.
Technical Specifications
- Type
- Flanged ball bearing unit (UCF / UCFC / UCFL)
- Designation
- SKF UCFC210/H
- HS code
- 8483.20
- Shaft diameter
- 50 mm
- Housing overall width
- 39 mm
- Width, total
- 42.6 mm
- Pitch diameter of bolt holes of round and triangle flange type housing
- 138 mm
- Bearing width, total
- 51.6 mm
- Attachment bolt diameter
- 14 mm
- Basic dynamic load rating
- 35.1 kN
- Basic static load rating
- 23.2 kN
- Limiting speed
- 3300 r/min
- Note
- Limiting speed with shaft tolerance h6
- Housing type
- Flanged
- Flanged housing type
- Round
- Number of bolt holes for fasteners
- 4
- Fastening bolt hole type
- Plain
- Retaining feature, inner ring
- Set screws
- Bore type
- Cylindrical
- Rubber seating ring
- Without
- Material, housing
- Cast iron
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing, bearing
- Seal and flinger on both sides
- Sealing type
- Contact, standard
- Sealing, unit
- Optional end cover
- Lubricant
- Grease
- Relubrication hole
- With
- Grease fitting
- With
- Product net weight
- 2.93 kg
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.20
Cross References
- NTN 210
- NSK 210
- FAG 210
- Koyo 210
- ASAHI 210
- Equivalent: 210 (NTN)
- Equivalent: 210 (NSK)
- Equivalent: 210 (FAG)
- Equivalent: 210 (Koyo)
- Equivalent: 210 (ASAHI)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
