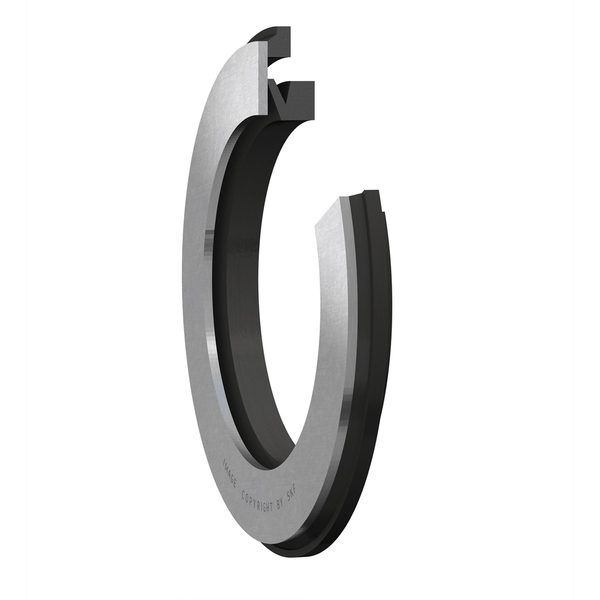

SKF TSN509AE Bearing housing accessory
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF TSN509AE bearing housing accessory. Housing-mounted accessory — taconite seal (TSN), labyrinth seal (LOR), V-ring seal (LER), oil ring, oil sight-glass, drain plug, breather, lock nut cover, adapter-sleeve cap. Sized to fit an SNL / SAF / SAW pillow-block housing of matching numeric designation.
Technical Specifications
- Type
- Bearing housing accessory
- Designation
- SKF TSN509AE
- HS code
- 8483.90
- Shaft diameter
- 38.1 mm
- Housing groove diameter
- 64.5 mm
- Width
- 8.25 mm
- Accessory type
- Housing seal
- Sealing type
- V-ring
- Material
- Nitrile rubber with steel element
- Product net weight
- 0.047 kg
- eClass code
- 23-05-17-90
- UNSPSC code
- 31171519
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.90
Cross References
- Cooper Split 509
- Dodge 509
- Rexnord 509
- Equivalent: 509 (Cooper Split)
- Equivalent: 509 (Dodge)
- Equivalent: 509 (Rexnord)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
