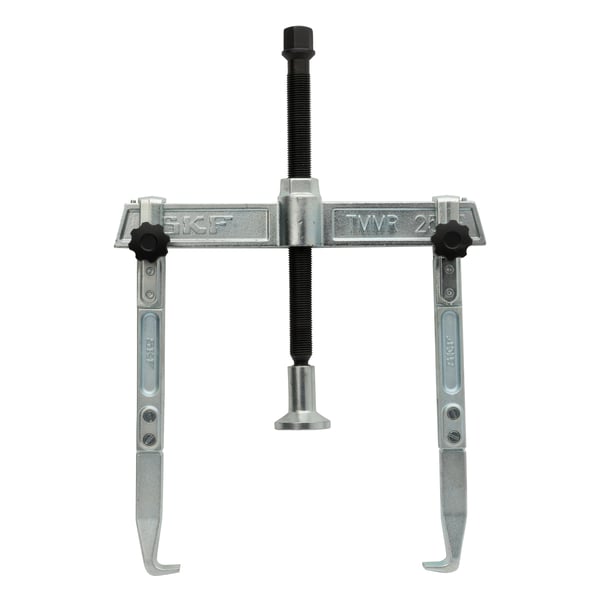

SKF TMMR250XL Bearing mounting / dismounting tool
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF TMMR250XL bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.
Technical Specifications
- Type
- Bearing mounting / dismounting tool
- Designation
- SKF TMMR250XL
- HS code
- 8205.59
- Country of Manufacturing (COM code)
- 35 - Slovenia
- Product net weight
- 4.49 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 27111712
- Recommended applications
- For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft
- Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)
- Yes
- Suitable for bearing dismounting from a Tapered seating (conical shaft)
- Yes
- Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve)
- Yes
- Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)
- No
- Suitable for workpiece dismounting from a Housing
- Yes, with spindle support (not included)
- Suitable for bearing type(s)
- All
- Dismounting force generation
- Spindle
- Special features
- Reversible arms;Selflocking arms; Extendable arms;Nosepiece with spring loaded tip
- Number of arms
- 2
- Effective arm length
- 221 mm
- Total Arm length
- 330 mm
- Claw height
- 8.5 mm
- Claw length
- 16 mm
- Claw width
- 25 mm
- Spindle torque (max)
- 160 N·m
- Spindle head, hexagon size
- 24 mm
- Puller or Adapter hexagon size
- 32 mm
- Spindle nose piece
- Yes, ⌀50 mm
- Material
- Alloy engineering steels, hardened and tempered
- Coating
- Zinc coated
- Content
- 1x Puller TMMR 250XL;1x Nosepiece;1x Tube of spindle grease LGEV2/0.035;1x Printed instructions for use
- Total spindle length
- 317 mm;350 mm with nosepiece
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8205.59
Cross References
- Enerpac 250
- Simatec 250
- Bega 250
- Equivalent: 250 (Enerpac)
- Equivalent: 250 (Simatec)
- Equivalent: 250 (Bega)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF NNU4968B/SPW33 Super-precision cylindrical roller bearing (NN 30XX / N 10XX)
SKF
SKF P2BL112-WF Pillow block ball bearing unit (UCP / UEP / UKP)
SKF
SKF PHFFX60-90X130 Keyless shaft bushing / locking assembly
SKF
SKF SILKB20F Rod end (spherical plain bearing with threaded eye)
SKF
SKF 667X700X50DOCH60 Metal face seal (Duo-Cone / mud seal)
SKF

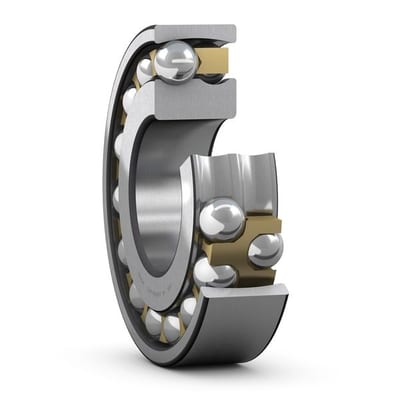

SKF 2305M Self-aligning ball bearing (12XX / 13XX / 22XX)
SKF

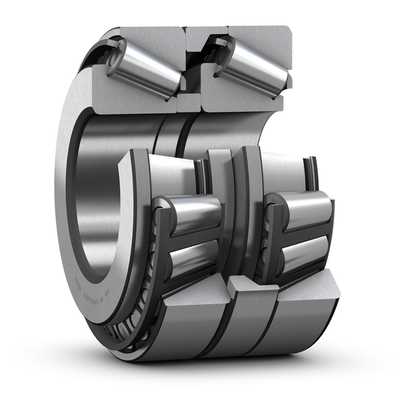

SKF T7FC060T80/HN3DTV004 Matched pair / set of tapered roller bearings
