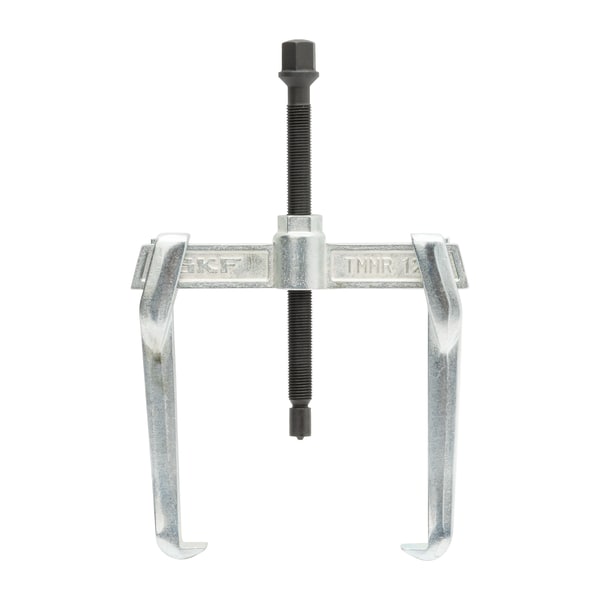

SKF TMMR120F Two-arm bearing puller
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF TMMR120F bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.
Technical Specifications
- Type
- Bearing mounting / dismounting tool
- Designation
- SKF TMMR120F
- HS code
- 8205.59
- Country of Manufacturing (COM code)
- 35 - Slovenia
- Product net weight
- 1.18 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 27111712
- Recommended applications
- For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft
- Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)
- Yes
- Suitable for bearing dismounting from a Tapered seating (conical shaft)
- Yes
- Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve)
- Yes
- Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)
- No
- Suitable for workpiece dismounting from a Housing
- Yes, with spindle support (not included)
- Suitable for bearing type(s)
- All
- Dismounting force generation
- Spindle
- Special features
- Reversible arms;Selflocking arms
- Number of arms
- 2
- Effective arm length
- 124 mm
- Total Arm length
- 171 mm
- Claw height
- 7 mm
- Claw length
- 14 mm
- Claw width
- 19 mm
- Spindle torque (max)
- 75 N·m
- Spindle head, hexagon size
- 17
- Puller or Adapter hexagon size
- 22 mm
- Spindle nose piece
- No
- Material
- Alloy engineering steels, hardened and tempered
- Coating
- Zinc coated
- Content
- 1x Puller TMMR 120F;1x Tube of spindle grease LGEV2/0.035;1x Printed instructions for use
- Total spindle length
- 208 mm
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8205.59
Cross References
- Enerpac 120
- Simatec 120
- Bega 120
- Alt. designation TMMR 120F
- Equivalent: 120 (Enerpac)
- Equivalent: 120 (Simatec)
- Equivalent: 120 (Bega)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
