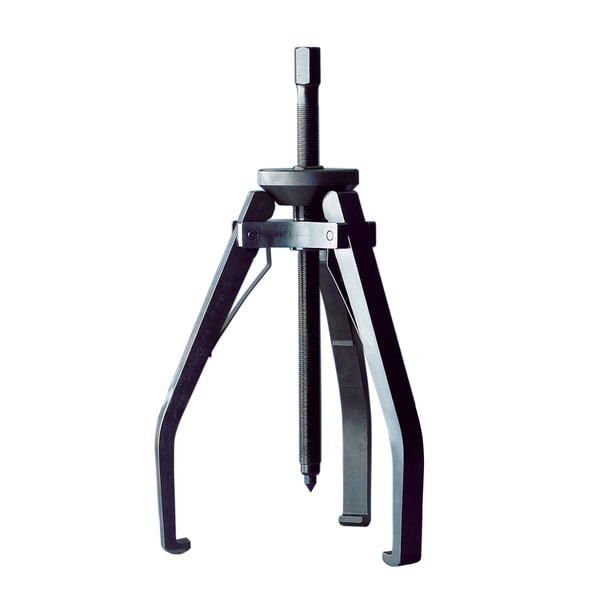

SKF TMMP3X300 Bearing mounting / dismounting tool

SKF TMMP3X300 bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.

Type

Bearing mounting / dismounting tool

Designation

SKF TMMP3X300

HS code

8205.59

Effective arm length

240 mm

Claw height

11 mm

Claw length

14 mm

Claw width

27 mm

Spindle head, hexagon size

24

Total spindle length

373 mm

Recommended applications

For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)

Yes

Suitable for bearing dismounting from a Tapered seating (conical shaft)

Yes

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve)

Yes

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)

No

Suitable for workpiece dismounting from a Housing

No

Suitable for bearing type(s)

All

Dismounting force generation

Spindle

Special features

Cone-system for automatic centring and locking of the arms

Number of arms

3

Pulling force (max)

50 kN

Spindle torque (max)

160 N·m

Spindle nose piece

No

Colour

Black

Material

Alloy engineering steels, hardened and tempered

Coating

Chemical blackened

Content

1x Puller TMMP 3x300;1x Printed instructions for use

Country of Manufacturing (COM code)

25 - Hungary

Product net weight

8.6 kg

eClass code

23-05-19-01

UNSPSC code

27111712

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8205.59
