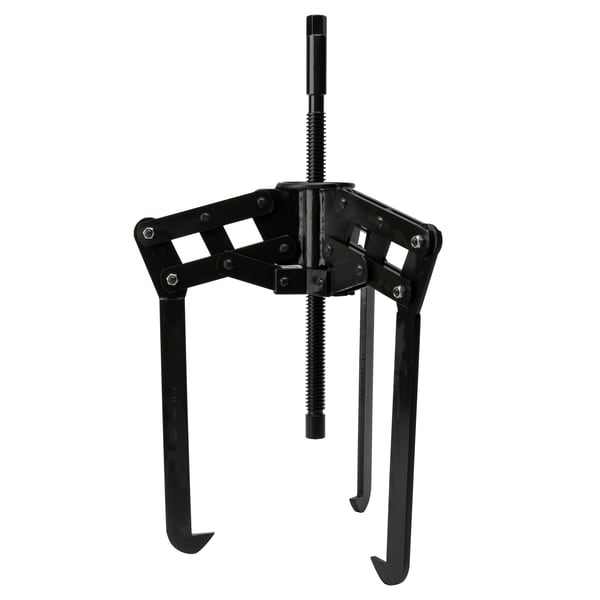

SKF TMMP15 Bearing mounting / dismounting tool
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF TMMP15 bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.
Technical Specifications
- Type
- Bearing mounting / dismounting tool
- Designation
- SKF TMMP15
- HS code
- 8205.59
- Effective arm length
- 340 mm
- Alternative arm lengths
- With accessory alternative arms: 260 mm or 435 mm or 685 mm
- Claw height
- 30 mm
- Claw length
- 37 mm
- Total Arm length
- 534 mm
- Claw width
- 12 mm
- Spindle head, hexagon size
- 28
- Total spindle length
- 661 mm
- Recommended applications
- For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft
- Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)
- Yes
- Suitable for bearing dismounting from a Tapered seating (conical shaft)
- Yes
- Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve)
- Yes
- Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)
- No
- Suitable for workpiece dismounting from a Housing
- No
- Suitable for bearing type(s)
- All
- Dismounting force generation
- Spindle
- Special features
- Pantograph mechanism for parallel openning of arms with selflocking function, heavy duty version. Alternative arm lenghs available.
- Number of arms
- 3
- Pulling force (max)
- 150 kN
- Spindle torque (max)
- 700 N·m
- Spindle nose piece
- Yes, ⌀32 mm
- Colour
- Black
- Material
- Alloy engineering steels, hardened and tempered
- Coating
- Chemical blackened
- Content
- 1x Puller TMMP 15;1x Printed instructions for use
- Country of Manufacturing (COM code)
- 25 - Hungary
- Product net weight
- 21.5 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 27111712
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8205.59
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
