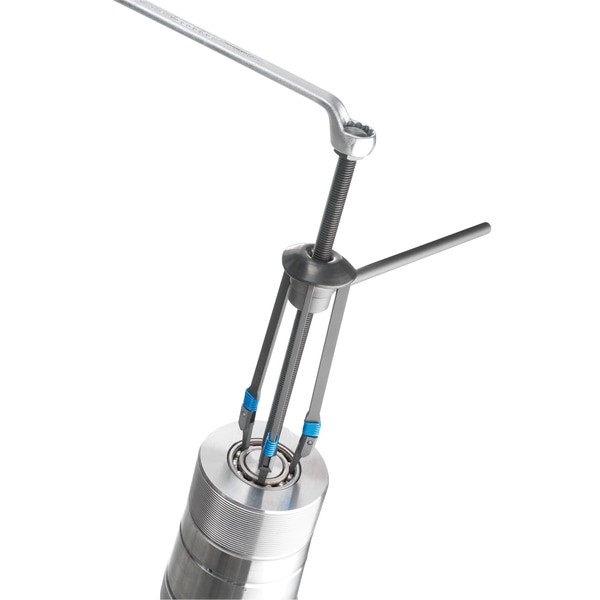

SKF TMMD100 Bearing mounting / dismounting tool
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF TMMD100 bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.
Technical Specifications
- Type
- Bearing mounting / dismounting tool
- Designation
- SKF TMMD100
- HS code
- 8205.59
- Total spindle length
- Spindle S1: 275 mm;Spindle S2: 288 mm
- Case dimensions (l x h x w)
- 530 x 85 x 180 mm
- Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)
- Yes
- Suitable for bearing dismounting from a Tapered seating (conical shaft)
- No
- Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve)
- No
- Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)
- Yes
- Suitable for workpiece dismounting from a Housing
- No
- Suitable for bearing type(s)
- SKF Deep Groove Ball Bearings (DGBB's)
- Number of arms
- 3
- Number of arm extension pieces
- -
- Max bearing depth
- With arm A1: 135 mm;With arm A2: 135 mm;With arm A3: 137 mm;With arm A4: 162 mm;With arm A5: 167 mm;With arm A6: 170 mm
- Total Arm length
- Arm A1: 188 mm;Arm A2: 189 mm;Arm A3: 193 mm;Arm A4: 226 mm;Arm A5: 231 mm;Arm A6: 236 mm
- Effective spindle length
- Spindle S1: 214 mm;Spindle S2: 214 mm
- Spindle nose piece
- No
- Spindle head, hexagon size
- Spindle S1: 19 mm;Spindle S2: 24 mm
- Total number of arms in kit
- 6 sets of 3
- Total number of spindles in kit
- 2
- Material
- Medium carbon steels and alloy engineering steels, hardened and tempered
- Coating
- Black phosphated
- Colour
- Black metallic
- Content
- 6x sets of 3 arms, size A1 to A6;2x spindles, size S1 and S2;1x Spindle holder;1x printed Instruction for Use (language free);1x Carrying case (size X)
- Country of Manufacturing (COM code)
- 35 - Slovenia
- Product net weight
- 3.6 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 27111712
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8205.59
Cross References
- Enerpac 100
- Simatec 100
- Bega 100
- Equivalent: 100 (Enerpac)
- Equivalent: 100 (Simatec)
- Equivalent: 100 (Bega)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
