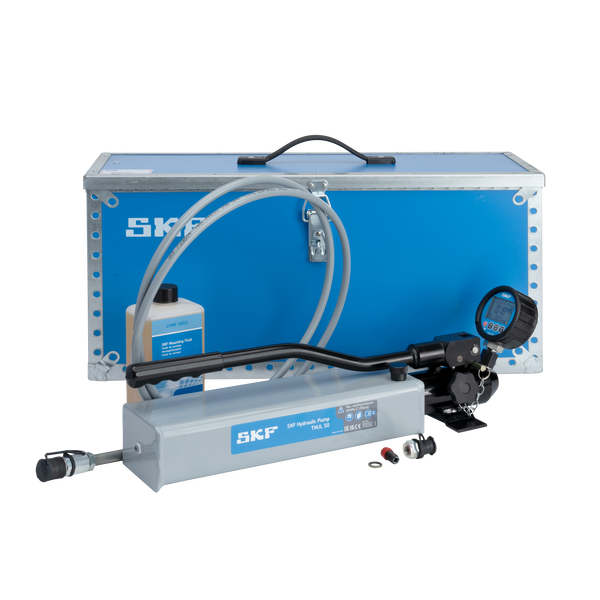

SKF TMJL50DU Hydraulic bearing mounting / dismounting tool
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF TMJL50DU hydraulic bearing mounting / dismounting tool. Hydraulic pump, oil injector, or hydraulically-driven nut used to mount a large tapered-bore bearing to its correct radial internal clearance, and to dismount it without shaft damage. SKF HMV-E hydraulic nut, TMHP / THAP pump, or SKF Drive-up-Method oil-pressure kit.
Technical Specifications
- Type
- Hydraulic bearing mounting / dismounting tool
- Designation
- SKF TMJL50DU
- HS code
- 8412.29
- Dimensions (W x L x H)
- 120 x 635 x 185 mm
- Case dimensions (l x h x w)
- 715 x 280 x 355 mm
- Maximum pressure
- 500 bar
- Maximum pressure (MPa)
- 50 MPa
- Recommended applications
- SKF Drive-up method using SKF hydraulic nuts smaller than or equal to HMV 200E;Oil injection applications where the maximum pressure is 500 MPa (7 250 psi)
- Type of pump
- Single stage
- Volume per stroke
- 35 ml
- Volume per stroke, 2nd stage
- 3.5 cm³
- Oil container capacity
- 2700 ml
- Pressure gauge
- Yes, digital
- Hose length
- 3000 mm
- Filled with oil
- Yes, with SKF Mounting Fluid LHMF 300
- Handle force at maximum oil pressure
- 310 N
- Connection nipple
- G 1/4 (male)
- Suitable for Drive up method
- Yes
- Housing material
- Steel pump body
- Colour
- Grey;Black
- Relative humidity
- 0 to 75%, non-condensing
- Content
- Pump with mounting fluid; pressure hose; quick connection coupling;quick connection nipple;digital pressure gauge;tool case;1l can of mounting fluid
- Country of Manufacturing (COM code)
- 15 - United Kingdom
- Product net weight
- 15.4 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 27112908
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8412.29
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
