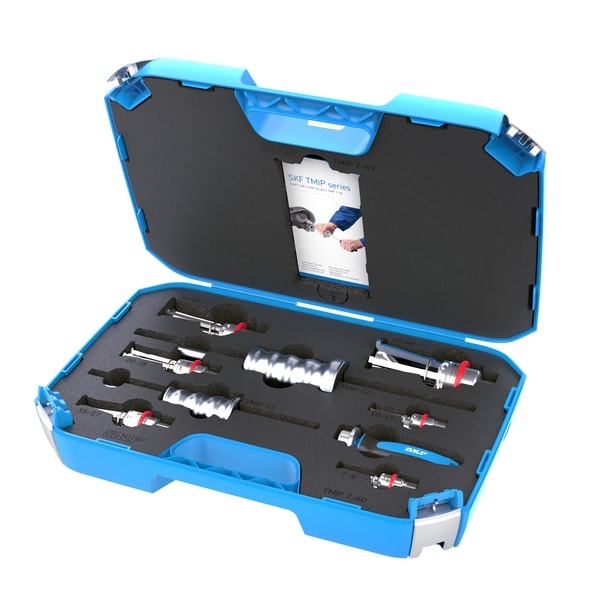

SKF TMIP7-60 Bearing mounting / dismounting tool

SKF TMIP7-60 bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.

Type

Bearing mounting / dismounting tool

Designation

SKF TMIP7-60

HS code

8205.59

Workpiece width (max)

TMIP E7-9: 10 mm;TMIP E10-12:11 mm;TMIP E15-17: 18 mm;TMIP E20-28: 24 mm;TMIP E30-40: >35 mm; TMIP E45-60: >64 mm

Housing depth (max)

TMIP E7-9: 39 mm; TMIP E10-12:45 mm;TMIP E15-17: 55 mm;TMIP E20-28: 60 mm;TMIP E30-40: 97 mm; TMIP E45-60:102 mm

Needed free depth behind workpiece

TMIP E7-9: 6 mm; TMIP E10-12: 6 mm;TMIP E15-17: 7.5 mm;TMIP E20-28: 10 mm;TMIP E30-40: 11.5 mm; TMIP E45-60:15 mm

Extractor Hexagonal head size

Up to size TMIP E20-28: 15 mm;from size TMIP 30-40: 19 mm

Total extractor length

TMIP E7-9: 91 mm; TMIP E10-12: 91 mm;TMIP E15-17: 118 mm;TMIP E20-28: 127 mm;TMIP E30-40: 143 mm; TMIP E45-60:155 mm

Slide hammer total length

417mm;557mm

Case dimensions (l x h x w)

530 x 110 x 360 mm

Recommended applications

For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit inside a housing

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)

No

Suitable for bearing dismounting from a Tapered seating (conical shaft)

No

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve)

No

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)

No

Suitable for workpiece dismounting from a Housing

Yes

Suitable for bearing type(s)

All

Dismounting force generation

Sliding hammer

Special features

With unique spring-loaded grip system for easy operation

Total number of extractors in kit

6x : TMIP E7-9, TMIP E10-12 , TMIP E15-17, TMIP E20-28, TMIP E30-40, TMIP E45-60

Slide hammer weight(s)

1.0 kg;2.05 kg

Total number of sliding hammers in kit

2x :TMIP S1 and TMIP S2 with common handgrip

Material

Medium carbon steels and alloy engineering steels, hardened and tempered

Material handle

Opener handle: steel

Slidehammer

thermoplastic elastomer

Coating

Zinc coated

Content

6x Extractors size E7-9 to E45-60;2x slidehammer, sizes S1 and S2 with common handgrip;1x Printed Instructions for Use (language free);1x Carrying case (size C)

Country of Manufacturing (COM code)

35 - Slovenia

Product net weight

8.74 kg

eClass code

23-05-19-01

UNSPSC code

27111712

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8205.59
