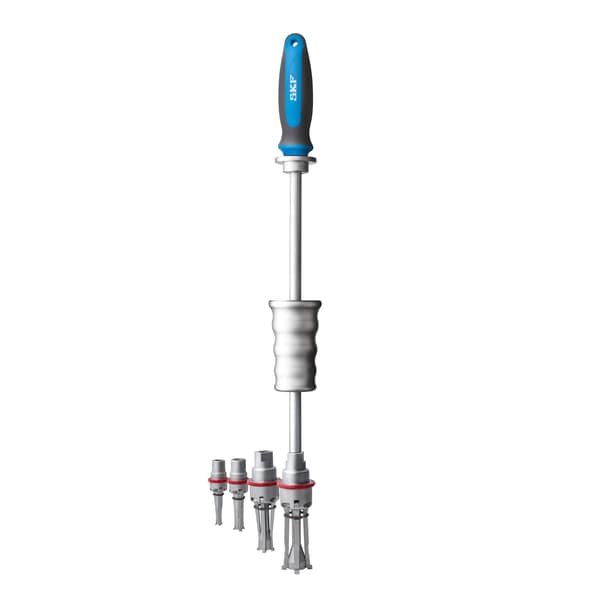

SKF TMIP7-28 Bearing mounting / dismounting tool

SKF TMIP7-28 bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.

Type

Bearing mounting / dismounting tool

Designation

SKF TMIP7-28

HS code

8205.59

Workpiece width (max)

TMIP E7-9: 10 mm;TMIP E10-12:11 mm;TMIP E15-17: 18 mm;TMIP E20-28: 24 mm

Housing depth (max)

TMIP E7-9: 39 mm; TMIP E10-12:45 mm;TMIP E15-17: 55 mm;TMIP E20-28: 60 mm

Needed free depth behind workpiece

TMIP E7-9: 6 mm; TMIP E10-12: 6 mm;TMIP E15-17: 7.5 mm;TMIP E20-28: 10 mm

Extractor Hexagonal head size

All: 15 mm

Total extractor length

TMIP E7-9: 91 mm; TMIP E10-12: 91 mm;TMIP E15-17: 118 mm;TMIP E20-28: 127 mm

Slide hammer total length

417 mm

Case dimensions (l x h x w)

530 x 85 x 180 mm

Recommended applications

For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit inside a housing

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)

No

Suitable for bearing dismounting from a Tapered seating (conical shaft)

No

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve)

No

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)

No

Suitable for workpiece dismounting from a Housing

Yes

Suitable for bearing type(s)

All

Dismounting force generation

Sliding hammer

Special features

With unique spring-loaded grip system for easy operation

Total number of extractors in kit

4x : TMIP E7-9, TMIP E10-12 , TMIP E15-17, TMIP E20-28

Slide hammer weight(s)

1.0 kg

Total number of sliding hammers in kit

1x :TMIP S1

Material

Medium carbon steels and alloy engineering steels, hardened and tempered

Material handle

Opener handle: steel

Slidehammer

thermoplastic elastomer

Coating

Zinc coated

Content

4x Extractors size E7-9 to E20-28;1x slidehammer, size S1;1x Printed Instructions for Use (language free);1x Carrying case (size X)

Country of Manufacturing (COM code)

35 - Slovenia

Product net weight

3.09 kg

eClass code

23-05-19-01

UNSPSC code

27111712

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8205.59
