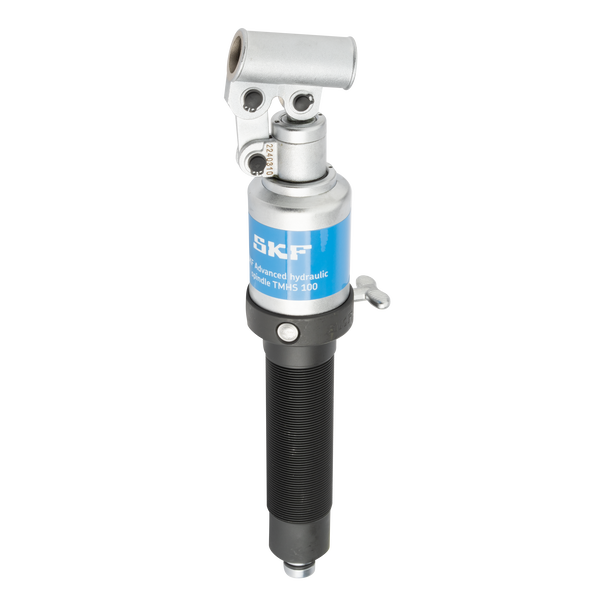

SKF TMHS100-1 Bearing mounting / dismounting tool

SKF TMHS100-1 bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.

Type

Bearing mounting / dismounting tool

Designation

SKF TMHS100-1

HS code

8205.59

Country of Manufacturing (COM code)

49 - Taiwan

Product net weight

2.62 kg

eClass code

23-05-19-01

UNSPSC code

27111712

Recommended applications

For use as force generator with desingated SKF pullers in the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft.

Special features

Integrated safety valve; Closed hydraulic system

Pulling force (max)

100 kN

Hydraulic spindle, piston stroke

85 mm

Connecting thread

UN 1.5 x 16 tpi

Total spindle length

495

Spindle nose piece

not included

Material

Alloy engineering steels, hardened and tempered

Coating

Spindle and handle bar: chrome coated;Spindle body, nose and extention pieces black phosphated

Colour

Metallic and black

Relative humidity

< 75%

Content

1× Hydraulic spindle;QR code card

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8205.59
