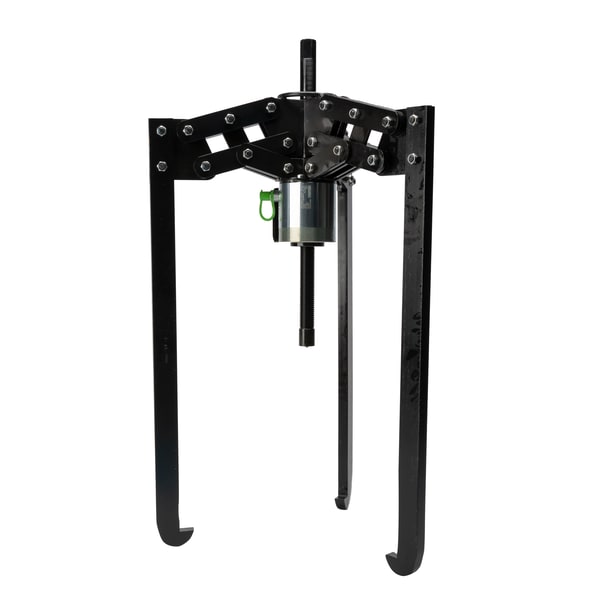

SKF TMHP50/570X Bearing mounting / dismounting tool

SKF TMHP50/570X bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.

Type

Bearing mounting / dismounting tool

Designation

SKF TMHP50/570X

HS code

8205.59

Effective arm length

570 mm

Alternative arm lengths

With accessory alternative arms: 140 or 320 mm

Claw height

40 mm

Claw length

32 mm

Total Arm length

913 mm

Claw width

24 mm

Spindle head, hexagon size

30 mm

Total spindle length

648 mm

Recommended applications

For the dismounting of larger bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)

Yes

Suitable for bearing dismounting from a Tapered seating (conical shaft)

Yes

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve)

Yes

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)

No

Suitable for workpiece dismounting from a Housing

No

Suitable for bearing type(s)

All

Dismounting force generation

A hydraulic pump is needed to advance the piston of the hydraulic cylinder in this puller, in which a mechanical spindle is fitted. The recommended pump TMJL to connect to the hydraulic cylinder, is available as accessory.

Number of arms

3

Pulling force (max)

500 kN

Hydraulic Cylinder, piston stroke

40 mm

Hydraulic Cylinder, Maximum Operating Pressure

800 bar

Hydraulic Cylinder, Maximum Operating Pressure

80 MPa

Hydraulic Cylinder, Oil capacity

260 cm³

Oil viscosity (maximum)

300 mm²/s

Spindle nose piece

Yes, ⌀35 mm

Colour

Black

Material

Alloy engineering steels, hardened and tempered

Coating

Chemical blackened

Content

1x Puller TMHP 50/570X;1x Printed instructions for use;1x Piston hold tool;1x Wooden storage crate

Country of Manufacturing (COM code)

25 - Hungary

Product net weight

72 kg

eClass code

23-05-19-01

UNSPSC code

27111712

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8205.59
