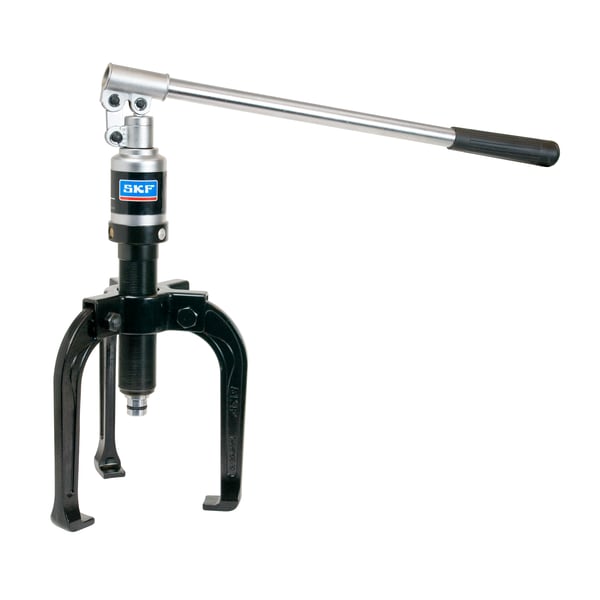

SKF TMHP10E Bearing mounting / dismounting tool

SKF TMHP10E bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.

Type

Bearing mounting / dismounting tool

Designation

SKF TMHP10E

HS code

8205.59

Workpiece outer diameter range, using arms

Set 1: 75 to 170 mm;Set 2: 80 to 250 mm;Set 3: 110 to 280 mm;

Reach, using arms (max)

Set 1: 115 mm;Set 2: 160 mm;Set 3: 200 mm

Claw height

8 mm

Claw length

15 mm

Claw width

25 mm

Hydraulic spindle, piston stroke

80 mm

Puller adaptor thread

UN 1.5 x 16 tpi

Total spindle length

655 mm (incl. 3 available extension pieces)

Recommended applications

For dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft. Can be used as two armed puller if space around the component is restricted.

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)

Yes

Suitable for bearing dismounting from a Tapered seating (conical shaft)

Yes

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve)

Yes

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)

No

Suitable for workpiece dismounting from a Housing

No

Suitable for bearing type(s)

All

Dismounting force generation

Hydraulic spindle (TMHS 100)

Special features

Centring and self locking system for firm grip of the component ;Useable as 2 or 3 armed puller, Provided with 3 different arm sets, Provided with various spindle extension pieces to quickly adapt the reach;Hydraulic spindle with integrated safety valve for safer use

Pulling force (max)

100 kN

Total number of arms in kit

3 sets of 3

Arms

Set 1 (TMHP 10E-10) with arm length 190 mm;Set 2 (TMHP 10E-11) with arm length 240 mm;Set 3 (TMHP 10E-12) with arm length 285 mm

Spindle nose piece

yes, ⌀ 30mm

Colour

Black;Silver

Material

Alloy engineering steels, hardened and tempered

Coating

Black phosphated, Hydraulic spindle with trivalent chromium parts

Relative humidity

max 75%

Case dimensions (l x h x w)

580 x 410 x 70 mm

Content

1 x arm-assembly stand;3 x arms, set 1 (TMHP 10E-10);3 x arms, set 2 (TMHP 10E-11);3 x arms, set 3 (TMHP 10E-12);1 x hydraulic spindle TMHS 100 (with handle bar);3 x extension pieces for hydraulic spindle: 50, 100, 150 mm;1 x nosepiece with centre point for hydraulic spindle;IFU QR Code card;Case

Country of Manufacturing (COM code)

49 - Taiwan

Product net weight

15 kg

eClass code

23-05-19-01

UNSPSC code

27111712

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8205.59
