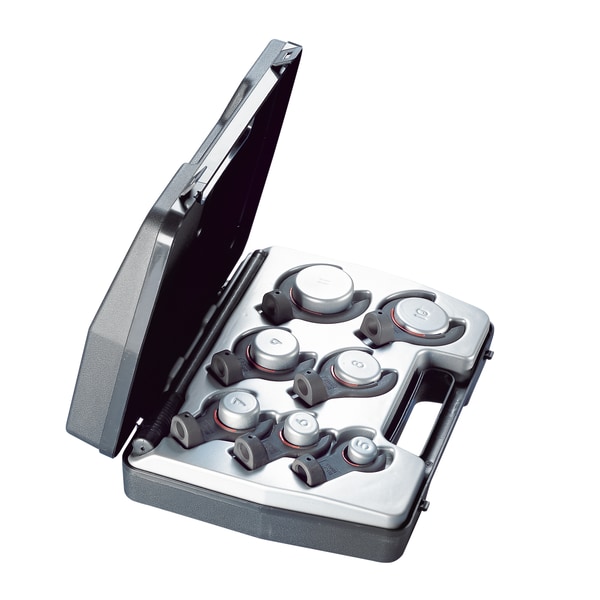

SKF TMHN7 Hook spanner set

SKF TMHN7 bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.

Type

Bearing mounting / dismounting tool

Designation

SKF TMHN7

HS code

8205.59

Handle length (Lₕ)

306 mm

Length (L)

388 mm

Working length (l)

354 mm

Case dimensions (l x h x w)

345 x 85 x 255 mm

Recommended applications

Suitable as a controlled drive-up method for certain sizes of Self Aligning Ball Bearings (SABB) by tightening lock nuts in split plummer (pillow) block housings. Alternatively it can be used on bearing arrangements with lock nuts on shafts, adapter sleeves, and withdrawal sleeves. Also suitable for loosing lock nuts in mentioned applications.

Series

Spanner set, for housings

Version

Kit

Allows bearing mounting

Yes, angle method

Fits on lock nuts inside SKF split pillow block housings (SNL)

Yes

Suitable SKF Locknut

KM 5, KM 6, KM 7, KM 8, KM 9, KM 10, KM 11, KMFE 5, KMFE 6, KMFE 7, KMFE 8, KMFE 9, KMFE 9 H, KMFE 10, KMFE 11, KMK 5, KMK 6, KMK 7, KMK 8, KMK 9, KMK 10, KMK 11, N 06, N 08, N 09, N 10

Material

Alloy engineering steel

Material handle

Steel handle with rubber grip

Coating

Black phosphated

Colour

Black metallic with orange mounting angle indications

Content

7x Spanners, sizes 5 to 11;1x Handle;1x Carrying case

Country of Manufacturing (COM code)

45 - India

Product net weight

2.17 kg

eClass code

23-05-19-01

UNSPSC code

27111712

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8205.59

• Alt. designation TMHN 7
