SKF TMHC110E Hydraulic bearing puller

SKF TMHC110E bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.

Type

Bearing mounting / dismounting tool

Designation

SKF TMHC110E

HS code

8205.59

Workpiece outer diameter range, using arms

Set 1: 50 to 110 mm;Set 2: 75 to 170 mm

Reach, using arms (max)

Set 1: 65 mm;Set 2: 115 mm

Claw height

8 mm

Claw length

15 mm

Claw width

25 mm

Hydraulic spindle, piston stroke

80 mm

Puller adaptor thread

UN 1.5 x 16 tpi

Workpiece outer diameter range, using separator

26 to 160 mm

Shaft diameter range, using separator

20 to 100 mm

Reach, using separator (max)

250 mm, using provided extension rods

Total spindle length

505 mm, incl. 2 available extension pieces

Recommended applications

For dismounting of bearings, gears, pulleys and other industrial ring shaped components from shafts in industrial, construction and agricultural applications. Option to choose from jaw puller or separator depending on the space surrounding the component.

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)

Yes

Suitable for bearing dismounting from a Tapered seating (conical shaft)

Yes

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve)

Yes

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)

No

Suitable for workpiece dismounting from a Housing

No

Suitable for bearing type(s)

All

Dismounting force generation

Hydraulic spindle,TMHS 100

Special features

Centring and self locking system for firm grip of the component ;Useable as 2 or 3 armed puller, Provided with 2 different arm sets, Provided with various spindle extension pieces to quickly adapt the reach;Provide the possibility with the separator to engage the inner ring of the bearing, thus making sure that no withdrawal force is transmitted through the rolling elements;Comes with extension rods to allow useage on longer shafts;Hydraulic spindle with integrated safety valve for safer use

Pulling force (max)

100 kN

Total number of arms in kit

2 sets of 3

Arms

Set 1, TMHP 10E-9 with arm length 140 mm;Set 2, TMHP 10E-10 with arm length 190 mm

Separator height

25 mm

Spindle nose piece

yes, ⌀ 30mm

Colour

Black;Silver

Material

Alloy engineering steels, hardened and tempered

Coating

Black phosphated, Hydraulic spindle with trivalent chromium parts

Relative humidity

max 75%

Case dimensions (l x h x w)

580 x 410 x 70 mm

Content

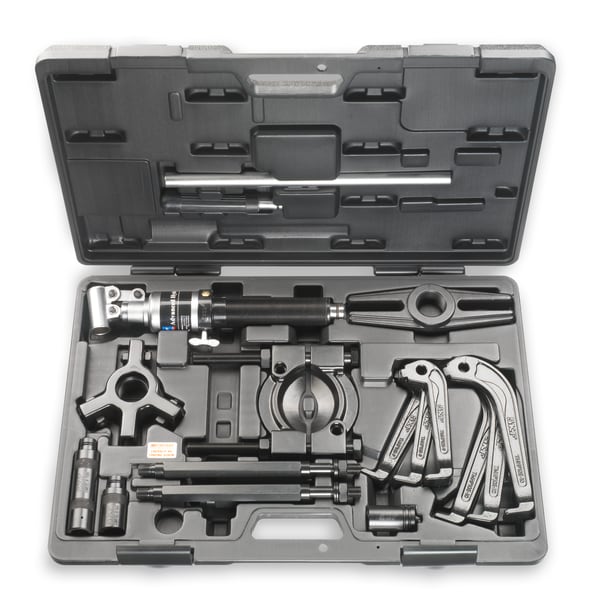

1 x arm-assembly stand;3 x arms, set 1, TMHP10E-9;3 x arms, set 2, TMHP10E-10;1 x separator set;1 x beam;2 x main rods;2 x extension rods, 125 mm;1 x hydraulic spindle TMHS 100, with handle bar;2 x extension pieces for hydraulic spindle: 50, 100 mm;1 x nosepiece with centre point for hydraulic spindle;IFU;Case

Country of Manufacturing (COM code)

49 - Taiwan

Product net weight

15.1 kg

eClass code

23-05-19-01

UNSPSC code

27111712

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8205.59
