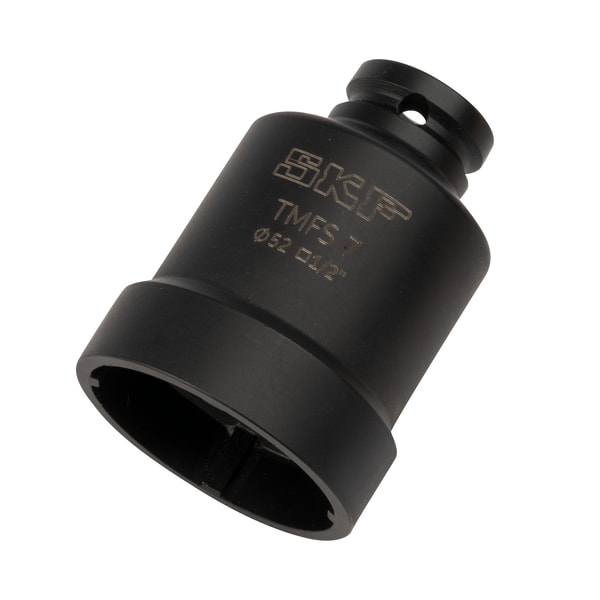

SKF TMFS7 Bearing mounting / dismounting tool

SKF TMFS7 bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.

Type

Bearing mounting / dismounting tool

Designation

SKF TMFS7

HS code

8205.59

Drive connection (C)

1/2"

Height (H)

82 mm

Effective height (h)

58 mm

Outer diameter

60 mm

Recommended applications

For a controlled use with torque wrenches or power tools for safe tightening or loosening of lock nuts on shafts, adapter sleeves, and withdrawal sleeves or in blind housings. Also particullarly suitable for applications where space limitations prevent the use of hookspanners.

Series

Axial lock nut socket, TMFS

Allows bearing mounting

Yes, angle method or with clearance reduction measurement

Fits on lock nuts inside SKF split pillow block housings (SNL)

No

Suitable SKF Locknut

KM 7, KMFE 7, KMK 7

Material

Alloy engineering steel, hardened and tempered

Coating

Black oxide

Colour

Black metallic

Country of Manufacturing (COM code)

45 - India

Product net weight

0.42 kg

eClass code

23-05-19-01

UNSPSC code

27111712

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8205.59
