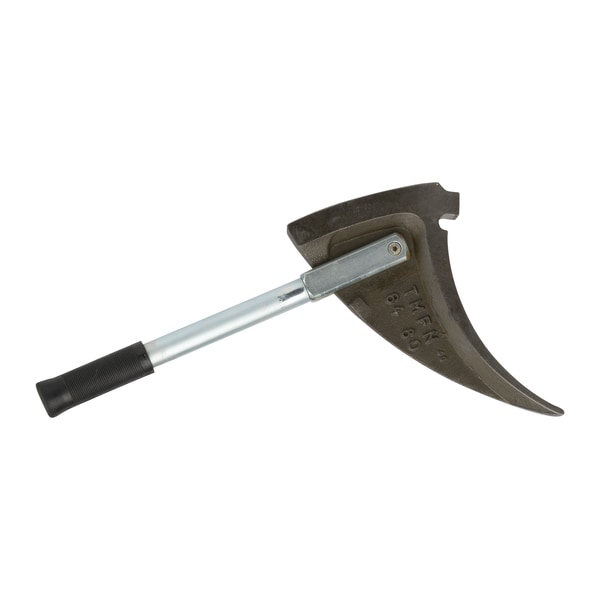

SKF TMFN64-80 Bearing mounting / dismounting tool
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF TMFN64-80 bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.
Technical Specifications
- Type
- Bearing mounting / dismounting tool
- Designation
- SKF TMFN64-80
- HS code
- 8205.59
- Handle length (Lₕ)
- 388 mm
- Nose width (Nₖ)
- 35 mm
- Nose height (Nₕ)
- 11 mm
- Nose Length (f)
- 23 mm
- Thickness (n)
- 35 mm
- Length (L)
- 475 mm
- Working length (l)
- 600 mm
- Height (H)
- 319 mm
- Recommended applications
- To safely tighten or loosen lock nuts after driving up large bearings on tapered seatings when working with rotating components in variety of applications with medium to large bearings and lock nuts.
- Series
- Impact spanner, TMFN
- Allows bearing mounting
- No
- Fits on lock nuts inside SKF split pillow block housings (SNL)
- No
- Suitable SKF Locknut
- HM 3068, HM 3070, HM 3072, HM 3074, HM 3076, HM 3078, HM 3080, HM 3082, HM 3084, HM 3164, HM 3166, HM 3168, HM 3170, HM 3172, HM 3174, HM 3176, HME 3068, HME 3070, HME 3072, HME 3074, HME 3076, HME 3078, HME 3080, HME 3082, HME 3084, HME 3164, HME 3166, HME 3168, HME 3170, HME 3172, HME 3174, HME 3176, N 068, N 070, N 072, N 074, N 076, N 076, N 078, N 080, N 080, N 082, N 084
- Handle fixation
- Pivotable
- Material
- Head: spheroidal cast iron;Handle: carbon steel
- Material handle
- Steel handle with rubber grip
- Coating
- Black phosphated head with galvanished handle
- Colour
- Black metallic, silver
- Country of Manufacturing (COM code)
- 31 - Czech Republic
- Product net weight
- 4.55 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 27111712
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8205.59
Cross References
- Enerpac 6480
- Simatec 6480
- Bega 6480
- Equivalent: 6480 (Enerpac)
- Equivalent: 6480 (Simatec)
- Equivalent: 6480 (Bega)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
