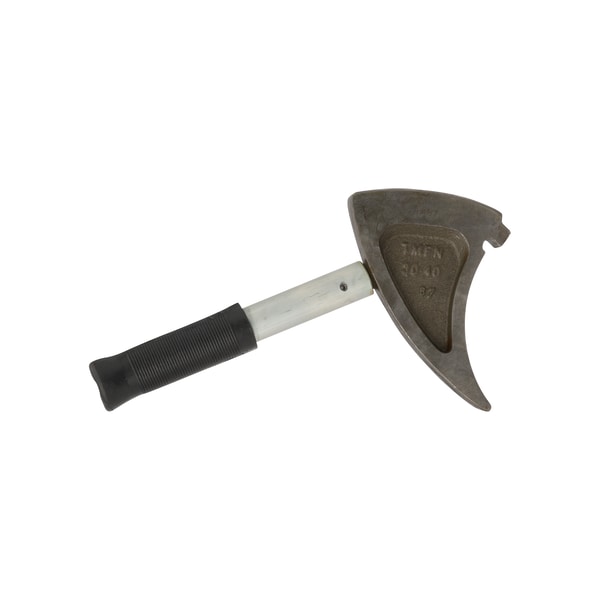

SKF TMFN30-40 Bearing mounting / dismounting tool

SKF TMFN30-40 bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.

Type

Bearing mounting / dismounting tool

Designation

SKF TMFN30-40

HS code

8205.59

Handle length (Lₕ)

208 mm

Nose width (Nₖ)

27 mm

Nose height (Nₕ)

5.3 mm

Nose Length (f)

13.5 mm

Thickness (n)

27 mm

Length (L)

313 mm

Working length (l)

345 mm

Height (H)

181 mm

Recommended applications

To safely tighten or loosen lock nuts after driving up large bearings on tapered seatings when working with rotating components in variety of applications with medium to large bearings and lock nuts.

Series

Impact spanner, TMFN

Allows bearing mounting

No

Fits on lock nuts inside SKF split pillow block housings (SNL)

No

Suitable SKF Locknut

KM 32, KM 34, KM 36, KM 38, KM 40, KMFE 30, KMFE 32, KMFE 34, KMFE 36, KMFE 38, KML 34, KML 36, KML 38, KML 40, KMT 32, KMT 34, KMT 36, KMT 38, KMT 40, N 034, N 036, N 038, N 040, AN 30, AN 32, AN 34, AN 36, AN 38

Handle fixation

Fixed with rubber damper

Material

Head: spheroidal cast iron;Handle: carbon steel

Material handle

Steel handle with rubber grip

Coating

Black phosphated head with galvanished handle

Colour

Black metallic, silver

Country of Manufacturing (COM code)

31 - Czech Republic

Product net weight

1.89 kg

eClass code

23-05-19-01

UNSPSC code

27111712

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8205.59

• Enerpac 3040
• Simatec 3040
• Bega 3040
• Equivalent: 3040 (Enerpac)
• Equivalent: 3040 (Simatec)
• Equivalent: 3040 (Bega)
