SKF TMBS100E Bearing disassembly tool

SKF TMBS100E bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.

Type

Bearing mounting / dismounting tool

Designation

SKF TMBS100E

HS code

8205.59

Case dimensions (l x h x w)

580 x 410 x 70 mm

Total spindle length

505 mm (incl. 2 available extension pieces)

Coating

Black phosphated, Hydraulic spindle with trivalent chromium parts

Colour

Black;Silver

Content

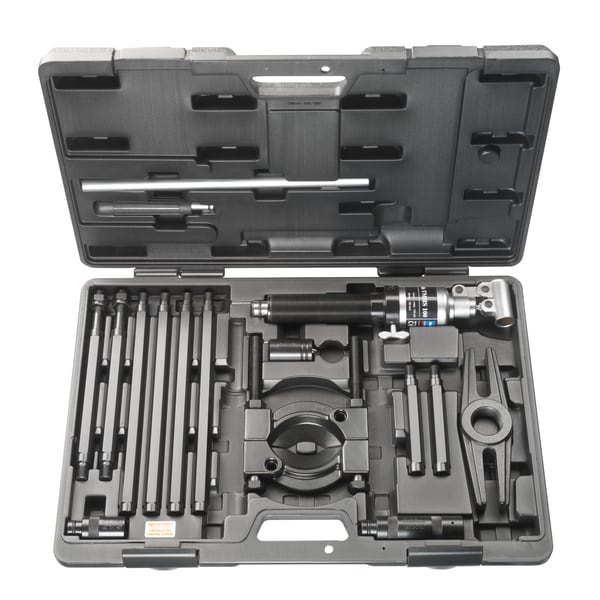

1 x separator set;1 x beam;2 x main rods;4 x extension rods, 285 mm;2 x extension rods, 125 mm;1 x hydraulic spindle TMHS 100 (with handle bar);2 x extension pieces for hydraulic spindle; 50, 100 mm;1 x nosepiece with centre point for hydraulic spindle;IFU QR Code card;Case

Dismounting force generation

Hydraulic spindle (TMHS 100)

Hydraulic spindle, piston stroke

80 mm

Material

Alloy engineering steels, hardened and tempered

Puller adaptor thread

UN 1.5 x 16 tpi

Pulling force (max)

100 kN

Reach, using separator (max)

816 mm (using all extension rods provided)

Recommended applications

For dismounting of bearings, gears, pulleys and other industrial ring shaped components from shafts in industrial, construction and agricultural applications, where there is limited space behind the component and traditional jaw pullers won't fit.

Relative humidity

max 75%

Separator height

25 mm

Shaft diameter range, using separator

20 to 100 mm

Special features

Provide the possibility to engage the inner ring of the bearing, thus making sure that no withdrawal force is transmitted through the rolling elements;Comes with various extension rods to allow useage on longer shafts;Hydraulic spindle with integrated safety valve for safer use

Spindle nose piece

yes, ⌀ 30mm

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve)

Yes

Suitable for bearing dismounting from a Tapered seating (conical shaft)

Yes

Suitable for bearing type(s)

All

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)

No

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)

Yes

Suitable for workpiece dismounting from a Housing

No

Workpiece outer diameter range, using separator

26 to 160 mm

Country of Manufacturing (COM code)

49 - Taiwan

Product net weight

14.1 kg

eClass code

23-05-19-01

UNSPSC code

27111712

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8205.59
