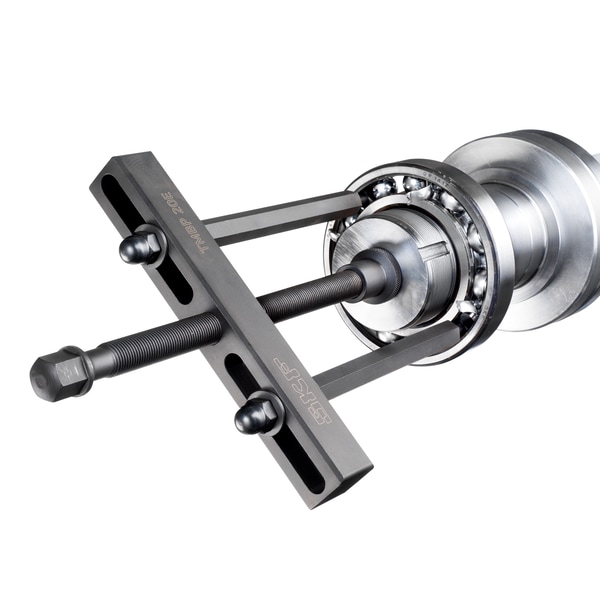

SKF TMBP20E Bearing mounting / dismounting tool
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF TMBP20E bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.
Technical Specifications
- Type
- Bearing mounting / dismounting tool
- Designation
- SKF TMBP20E
- HS code
- 8205.59
- Total spindle length
- 328 mm
- Case dimensions (l x h x w)
- 530 x 85 x 180 mm
- Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)
- Yes
- Suitable for bearing dismounting from a Tapered seating (conical shaft)
- No
- Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve)
- No
- Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)
- Yes
- Suitable for workpiece dismounting from a Housing
- No
- Suitable for bearing type(s)
- SKF Deep Groove Ball Bearings (DGBB's)
- Number of arms
- 2
- Number of arm extension pieces
- 4 included
- Spindle torque (max)
- 155 N·m
- Pulling force (max)
- 55 kN
- Max bearing depth
- With standard arm: 147 mm;With arm and 1 extension rod, 347 mm;With arm and 2 extension rods 547 mm
- Total Arm length
- Arm rod: 225 mm;Arm rod + extension rod: 425 mm;Arm rod + 2 extension rods: 625 mm
- Effective spindle length
- 225 mm
- Spindle nose piece
- Yes , diameter 39mm
- Spindle head, hexagon size
- 22 mm
- Total number of bearing adapters in kit
- 6 sets of 2
- Total number of spindles in kit
- 1
- Material
- Medium carbon steels and alloy engineering steels, hardened and tempered
- Coating
- Black phosphated
- Colour
- Black metallic
- Content
- 6x sets of 2 bearing adapters, size A to F;1x Beam; 1x spindle with nose piece;2x arm rods;4x arm extension rods;4x washers;2x nuts;1x printed Instruction for Use (language free);1x Carrying case (size X)
- Country of Manufacturing (COM code)
- 35 - Slovenia
- Product net weight
- 6.46 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 27111712
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8205.59
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
