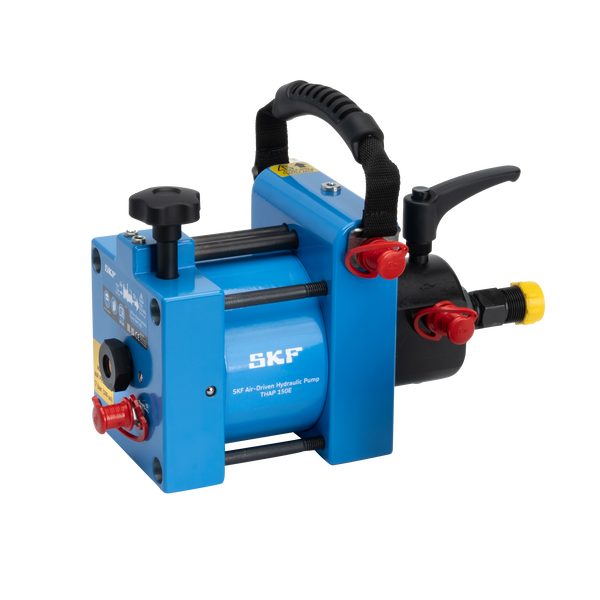

SKF THAP150E Hydraulic bearing mounting / dismounting tool
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF THAP150E hydraulic bearing mounting / dismounting tool. Hydraulic pump, oil injector, or hydraulically-driven nut used to mount a large tapered-bore bearing to its correct radial internal clearance, and to dismount it without shaft damage. SKF HMV-E hydraulic nut, TMHP / THAP pump, or SKF Drive-up-Method oil-pressure kit.
Technical Specifications
- Type
- Hydraulic bearing mounting / dismounting tool
- Designation
- SKF THAP150E
- HS code
- 8412.29
- Dimensions (W x L x H)
- 171 x 350 x 202 mm
- Case dimensions (l x h x w)
- 690 x 245 x 310 mm
- Maximum pressure
- 1500 bar
- Maximum pressure (MPa)
- 150 MPa
- Recommended applications
- Bolt tensioners;Mounting of propellers;Oil injection for large bearing seatings
- Volume per stroke
- 1.9 ml
- Air pressure limiter
- yes, at 7 bar
- Air consumption
- 200 l/min
- Pressure ratio
- 1:250
- Pressure gauge
- Optional
- Oil container
- No
- Oil outlet thread
- G 3/4
- Oil viscosity (maximum)
- 1500 mm²/s
- Housing material
- Aluminium;Alloy tool steel
- Colour
- Blue;Metallic grey
- Content
- Air driven pump 150 MPa (21 750 psi);2x Low pressure hoses with couplings(1.5 m/4.9 ft);Air hose coupling(f);Mounting fluid (1 ltr/0.22 gal);Instructions for use;Carrying case
- Country of Manufacturing (COM code)
- 11 - Sweden
- Product net weight
- 19.6 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 27112908
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8412.29
Cross References
- Enerpac 150
- Simatec 150
- Equivalent: 150 (Enerpac)
- Equivalent: 150 (Simatec)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
