SKF T4CB120 Single-row tapered roller bearing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF T4CB120 single-row tapered roller bearing. Single-row tapered roller bearing designed to take combined heavy radial and one-direction axial load. Cone (inner ring), cup (outer ring) and rollers converge at a common apex on the bearing axis. Two bearings are always mounted in opposition. Metric dimensions per ISO 355; imperial to ANSI/ABMA 19.1.
Technical Specifications
- Type
- Single-row tapered roller bearing
- Designation
- SKF T4CB120
- HS code
- 8482.20
- Bore diameter
- 120 mm
- Outside diameter
- 170 mm
- Width, total
- 27 mm
- Width, inner ring
- 25 mm
- Width, outer ring
- 19.5 mm
- Contact angle
- 17.5 °
- Basic dynamic load rating
- 195 kN
- Basic static load rating
- 250 kN
- Reference speed
- 2800 r/min
- Limiting speed
- 3600 r/min
- SKF performance class
- SKF Explorer
- Bearing part
- Complete bearing
- Number of rows
- 1
- Locating feature, bearing outer ring
- Without
- Bore type
- Cylindrical
- Cage
- Sheet metal
- Arrangement of contact angle (double-row bearing)
- Not applicable
- Matched arrangement
- No
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- Without
- Unit system
- Metric
- Indicative carbon footprint for new product
- 6.5 kg CO2e
- Product net weight
- 1.76 kg
- eClass code
- 23-05-09-10
- UNSPSC code
- 31171516
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- Timken 4120
- NSK 4120
- NTN 4120
- FAG 4120
- Koyo 4120
- Equivalent: 4120 (Timken)
- Equivalent: 4120 (NSK)
- Equivalent: 4120 (NTN)
- Equivalent: 4120 (FAG)
- Equivalent: 4120 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF NU2208ECP/CNM Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF UCF209 Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF
SKF T4CB140 Single-row tapered roller bearing
SKF
SKF NU2208ECPH Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF UCF209-28 Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF
SKF T4DB150 Single-row tapered roller bearing
SKF
SKF NU2209ECJ Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF

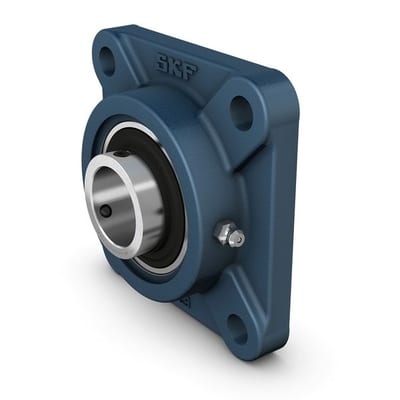

SKF UCF209/H Flanged ball bearing unit (UCF / UCFC / UCFL)
