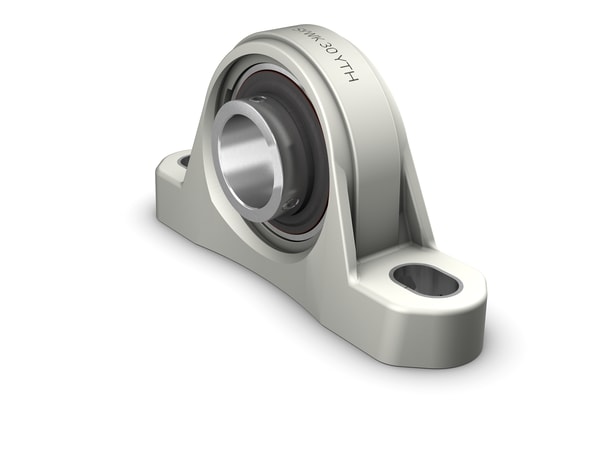

SKF SYWK1.YTH Pillow block ball bearing unit (UCP / UEP / UKP)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF SYWK1.YTH pillow block ball bearing unit (ucp / uep / ukp). Two-bolt pillow-block cast-iron, SG-iron or thermoplastic housing pre-assembled with a spherical-outer-ring insert bearing. Absorbs shaft-to-support misalignment during assembly and in service. Standard shaft attachment is set-screw (UCP); eccentric locking collar (UEP) and adapter-sleeve (UKP) variants available. Dimensioned to ISO 3228 / DIN 626.
Technical Specifications
- Type
- Pillow block ball bearing unit (UCP / UEP / UKP)
- Designation
- SKF SYWK1.YTH
- HS code
- 8483.20
- Shaft diameter
- 25.4 mm
- Centre height (pillow block)
- 36.5 mm
- Housing overall width
- 32 mm
- Centre distance between bolt holes
- 105.5 mm
- Bearing width, total
- 34.1 mm
- Attachment bolt diameter
- 9.525 mm
- Basic dynamic load rating
- 11.9 kN
- Basic static load rating
- 7.8 kN
- Limiting speed
- 4300 r/min
- Note
- Limiting speed with shaft tolerance h6
- Housing type
- Pillow block, normal base
- Number of bolt holes for fasteners
- 2
- Fastening bolt hole type
- Plain
- Retaining feature, inner ring
- Set screws
- Bore type
- Cylindrical
- Rubber seating ring
- Without
- Material, housing
- Composite for the SKF Food Line
- Material, bearing
- Stainless steel
- Coating
- Without
- Sealing, bearing
- Seal and flinger on both sides
- Sealing type
- Contact, multiple
- Sealing, unit
- Optional end cover
- Lubricant
- Grease
- Relubrication hole
- Without
- Grease fitting
- Without
- Product net weight
- 0.308 kg
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.20
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF LM11749/710/VA983 Single-row tapered roller bearing
SKF
SKF NJ330ECM/C3 Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF FYC55TF Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF
SKF SYWK15/16YTA Pillow block ball bearing unit (UCP / UEP / UKP)
SKF
SKF LM11749/Q Single-row tapered roller bearing
SKF
SKF NJ332ECML Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF FYC60TF Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF
SKF SYWK20YTA Pillow block ball bearing unit (UCP / UEP / UKP)
Technical guides
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy SYWK1.YTH?
- SYWK1.YTH can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is SYWK1.YTH.
- What is the HS code for SYWK1.YTH?
- The customs tariff (HS) code for SYWK1.YTH is 8483.20.
- Who manufactures SYWK1.YTH?
- SYWK1.YTH is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for SYWK1.YTH?
- Yes — the SYWK1.YTH datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for SYWK1.YTH?
- The minimum order quantity is 1.
- Is SYWK1.YTH available?
- Yes — SYWK1.YTH is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
