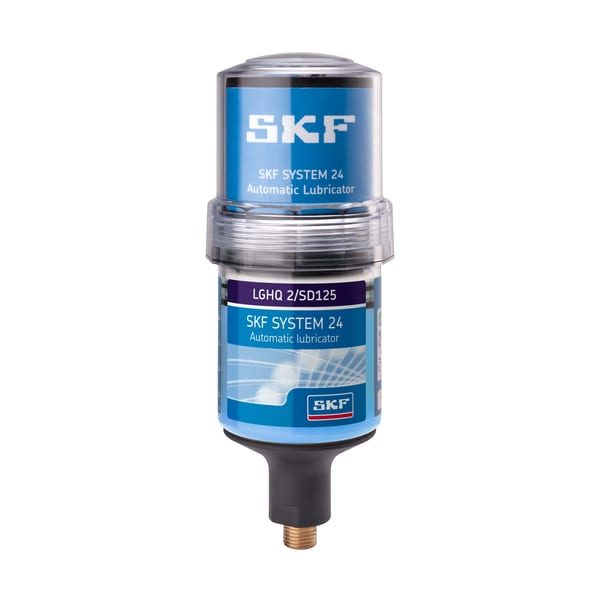

SKF System 24 TLSD 125/HQ2 Electro-Mechanical Single-Point Automatic Lubricator 125 ml LGHQ 2

SKF SYSTEM 24 TLSD 125/HQ2 electro-mechanical (battery-driven) single-point automatic lubricator pre-filled with 125 ml of SKF LGHQ 2 high-performance, high-load, high-temperature grease (NLGI 2). Reusable drive unit with replaceable cartridge and battery pack; dispense rate adjustable 1-12 months; LED status indication; IP 65; for direct or remote installation. SKF designation TLSD 125/HQ2.

SKF SYSTEM 24 TLSD 125/HQ2 electro-mechanical single-point automatic lubricator, pre-filled with 125 ml of SKF LGHQ 2 high-performance, high-load, high-temperature grease (NLGI 2). Electro-mechanical battery-driven single-point automatic lubricator; grease capacity 125 ml (4.2 US fl. oz); emptying time user-adjustable to 1, 2, 3, 4, 6, 8, 9, 10 or 12 months; lowest purge 0.3 ml per day, highest purge 4.1 ml per day; ambient temperature range 0 to +50 degC (30 to 120 degF); maximum operating pressure 5 bar (75 psi); drive mechanism electro-mechanical; connection thread G 1/4; maximum feed-line length up to 3 m (10 ft) with grease or up to 5 m (16 ft) with oil; ingress protection IP 65; alkaline battery pack 4.5 V 2.7 Ah (TLSD 1-BAT; lithium TLSD 1-BATC available for low ambient temperature); three-colour LED traffic-light status indication (green functioning, yellow pre-warning, red stopped); transparent reservoir for visual inspection; reusable drive unit accepts both 125 ml and 250 ml cartridges via a 125/250 ml switch; total weight 635 g (22.5 oz) incl. packaging; storage life of lubricator 3 years (2 years for food-grade lubricants and oils). Fill grease

SKF LGHQ 2 high-performance, high-load, high-temperature grease (NLGI 2). SKF order designation TLSD 125/HQ2.

Outer diameter

71 mm

Height (H)

188 mm

Maximum pressure

5 bar

Battery capacity

2.7 A·h

Lubricant operating temperature range

–30 to +160 °C

Lubricant quantity

125 ml

Nominal emptying time

User adjustable: 1, 2, 3, 4, 6, 8, 10 and 12 months

Recommended applications

Electric motors;Industrial fans;Water pumps;Vertical shaft applications

Series

TLSD

Version

Lubricator

Type

Lubricator (TLSD)

Drive mechanism

Electro mechanical

Biodegradable

Grease

Food Grade

No

Lubricant

LGHQ 2

Lubricant description

Wide temperature range electric motor bearing grease

NLGI consistency class

2

Certifications

NSF H1;Halal;Kosher

Dispense rate range

0–4.2 ml/d

Power source

Battery pack

Battery

Battery pack, TLSD 1-BAT

Battery type

Alkaline manganese

Battery voltage

4.5 V

Special features

Provided with Multicolor LED providing status and warning indications

Degree of protection (IP)

IP 65

Maximum feed line length

3 m

Connecting thread

G 1/4

Shelf life

3 year

Intrinsically safe approval

No

Ambient temperature range

0–50 °C

Recommended storage temperature

5–25 °C

Relative humidity

0 to 75%, non-condensing

Product lifecycle type

Drive unit reuseable, cannister and battery disposable

Mounting orientation

Any, head up preferred

Content

Drive unit (TLSD 1-DU);Cannister 125 ml (4.2 US fl. oz), filled with LGHQ 2 grease;Battery pack (TLSD 1-BAT);Mounting flange (TLSD 1-SP)

Country of Manufacturing (COM code)

27 - Portugal

Product net weight

0.58 kg

eClass code

23-06-10-14

UNSPSC code

15121902

LED indicator

Green LED (every 30 sec): OK;Yellow LED (every 30 sec): Pre-warning low battery power;Yellow LED (every 5 sec): Pre-warning high back pressure;Red LED (every 5 sec): Warning, stopped on error;Red LED (every 2 sec): Warning, empty cartridge

Pressure Rating

5 bar

Temperature Range

0 to +50 degC

IP Rating

IP 65

HS Code

8479.89
