SKF STO20 Track roller — support roller
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF STO20 track roller — support roller. Heavy-section outer-ring roller bearing designed to run directly on a linear track or profile rail, carrying radial load between a stationary axle and the moving track. Yoke-type (LR / RSTO / STO) or stud-type (LFR / KRV / KR / KRE). Widely used on trolley conveyors, sliding-gate rollers, deck-crane trolleys.
Technical Specifications
- Type
- Track roller — support roller
- Designation
- SKF STO20
- HS code
- 8482.20
- Functional outside diameter
- 47 mm
- Bore diameter
- 20 mm
- Width, total
- 16 mm
- Width, outer ring
- 15.8 mm
- Basic dynamic load rating
- 16.1 kN
- Basic static load rating
- 21.2 kN
- Limiting speed
- 4000 r/min
- Bearing part
- Complete track roller
- Rolling elements
- Needle rollers
- Number of rows
- 1
- Outer ring profile
- Crowned
- Axial guidance of outer ring
- No
- Number of flanges, outer ring
- 0
- Cage
- With
- Radial internal clearance
- CN
- Tolerance class
- Other
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Without
- Lubricant
- Grease
- Relubrication feature
- With
- Product net weight
- 0.152 kg
- eClass code
- 23-05-09-03
- UNSPSC code
- 31171512
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF P2BC20M-TPSS Pillow block ball bearing unit (UCP / UEP / UKP)
SKF
SKF PHFFX41-65X95 Keyless shaft bushing / locking assembly
SKF
SKF SI70TXE-2LS Rod end (spherical plain bearing with threaded eye)
SKF
SKF SNLD3272 SNL 30/31/32 split pillow-block housing
SKF

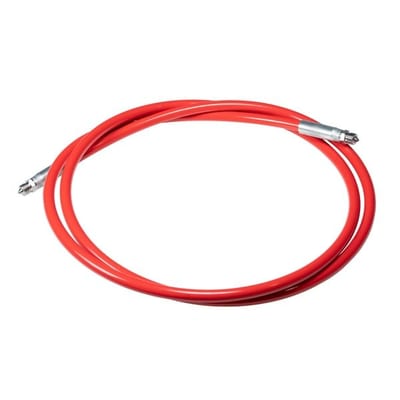

SKF THAP400-H/3 Hydraulic bearing mounting / dismounting tool
