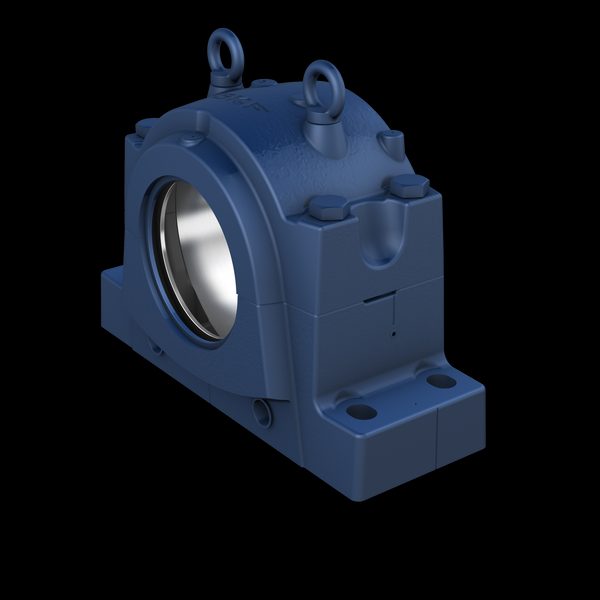

SKF SNLD3060GV SNL 30/31/32 split pillow-block housing

SKF SNLD3060GV snl 30/31/32 split pillow-block housing. Two-part split cast-iron pillow-block bearing housing (SKF SNL 30x / 31x / 32x metric series) accepting a spherical roller bearing on either a straight shaft (with lock nut and locking device) or a tapered shaft (with adapter sleeve). Standard variants oil-lubricated (SN oil ring), grease-lubricated with regreasing groove, sealed with taconite (TSN), triple-labyrinth (TSN-D) or V-ring closures.

Type

SNL 30/31/32 split pillow-block housing

Designation

SKF SNLD3060GV

HS code

8483.20

Diameter of bearing seat

460 mm

Width of bearing seat

168 mm

Centre height (pillow block)

280 mm

Centre distance between bolt holes

670 mm

Centre distance between bolt holes (axial direction)

160 mm

Attachment bolt diameter

36 mm

Housing type

Plummer/pillow block

Housing configuration

Two-piece

Mounting arrangement

Through shaft/Shaft end

Number of bolt holes for fasteners

4

Material, housing

Spheroidal graphite cast iron

Bearing housing seal type

Without

Housing lubrication feature/possibility

Grease

Product net weight

252 kg

eClass code

23-05-17-01

UNSPSC code

31171519

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8483.20

• Cooper Split 3060
• Dodge 3060
• Rexnord 3060
• Equivalent: 3060 (Cooper Split)
• Equivalent: 3060 (Dodge)
• Equivalent: 3060 (Rexnord)
