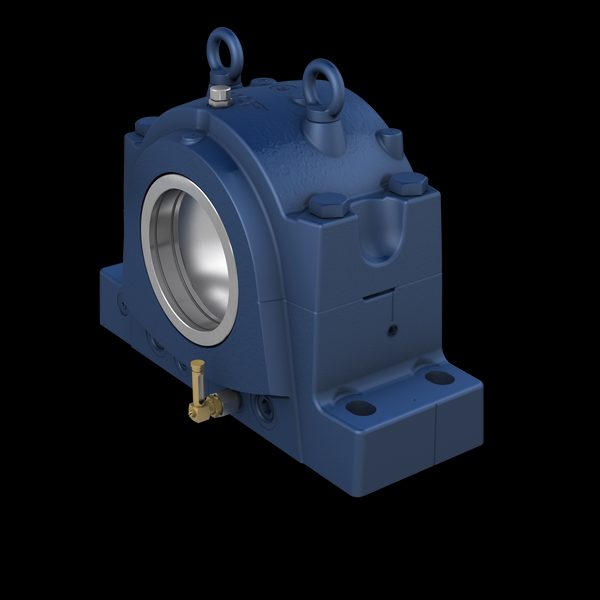

SKF SNL3036TURT SNL 30/31/32 split pillow-block housing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF SNL3036TURT snl 30/31/32 split pillow-block housing. Two-part split cast-iron pillow-block bearing housing (SKF SNL 30x / 31x / 32x metric series) accepting a spherical roller bearing on either a straight shaft (with lock nut and locking device) or a tapered shaft (with adapter sleeve). Standard variants oil-lubricated (SN oil ring), grease-lubricated with regreasing groove, sealed with taconite (TSN), triple-labyrinth (TSN-D) or V-ring closures.
Technical Specifications
- Type
- SNL 30/31/32 split pillow-block housing
- Designation
- SKF SNL3036TURT
- HS code
- 8483.20
- Diameter of bearing seat
- 280 mm
- Width of bearing seat
- 108 mm
- Centre height (pillow block)
- 170 mm
- Centre distance between bolt holes
- 430 mm
- Centre distance between bolt holes (axial direction)
- 100 mm
- Attachment bolt diameter
- 24 mm
- Housing type
- Plummer/pillow block
- Housing configuration
- Two-piece
- Mounting arrangement
- Through shaft/Shaft end
- Number of bolt holes for fasteners
- 4
- Material, housing
- Cast iron
- Bearing housing seal type
- Oil seal
- Housing lubrication feature/possibility
- Oil
- Product net weight
- 66 kg
- eClass code
- 23-05-17-01
- UNSPSC code
- 31171519
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.20
Cross References
- Cooper Split 3036
- Dodge 3036
- Rexnord 3036
- Equivalent: 3036 (Cooper Split)
- Equivalent: 3036 (Dodge)
- Equivalent: 3036 (Rexnord)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
