SKF SILKAC18M Rod end (spherical plain bearing with threaded eye)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF SILKAC18M rod end (spherical plain bearing with threaded eye). Threaded-eye housing with an integrated spherical plain bearing, providing self-alignment on hydraulic-cylinder rod ends, linkage pivots, actuator terminations. Female thread (SI / SIL) or male thread (SA / SAL); left-hand (L suffix) or right-hand thread. Steel-on-steel or steel-on-PTFE-composite raceway. ISO 12240-4 dimensioned.
Technical Specifications
- Type
- Rod end (spherical plain bearing with threaded eye)
- Designation
- SKF SILKAC18M
- HS code
- 8483.30
- Bore diameter, bearing inner ring
- 18 mm
- Outside diameter, housing eye
- 47 mm
- Width, bearing inner ring
- 23 mm
- Thread designation
- M 18x1.5
- Width, housing eye
- 17.5 mm
- Centre height, housing (from end of shank)
- 71 mm
- Housing length, total
- 95 mm
- Basic dynamic load rating
- 26 kN
- Basic static load rating
- 35.5 kN
- Sliding contact surface combination
- Steel/bronze
- Material, housing
- Steel
- Material, inner ring
- Bearing steel
- Maintenance
- Relubrication required
- Attachment feature, rod end shank
- Left-hand female thread
- Sealing
- Without
- Product net weight
- 0.307 kg
- eClass code
- 23-05-01-05
- UNSPSC code
- 31171508
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.30
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF 60X80X24DFCR60 Metal face seal (Duo-Cone / mud seal)
SKF
SKF 2222KM/C3 Self-aligning ball bearing (12XX / 13XX / 22XX)
SKF
SKF BT2-0230/L4B Matched pair / set of tapered roller bearings
SKF
SKF NJ208ECJ/C3 Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF

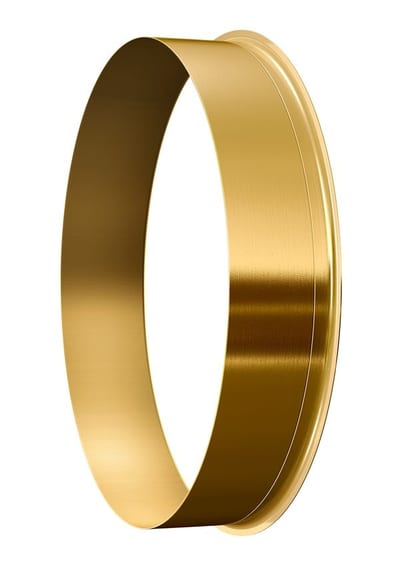

SKF 99810 SKF Speedi-Sleeve shaft wear sleeve
SKF

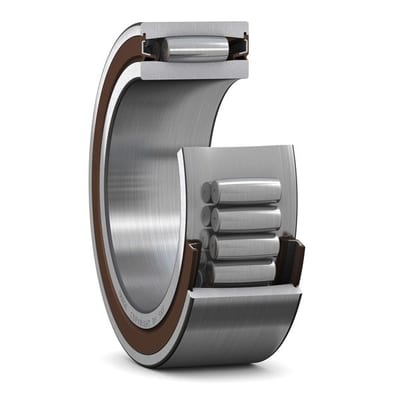

SKF C4030-2CS5V/C3GEM9 CARB toroidal roller bearing (C xxxx)
SKF

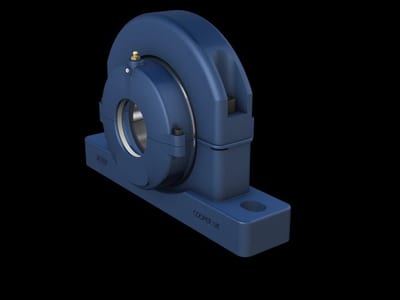

SKF COP.SNC516 Cooper split roller bearing
