SKF SC25ES Rod end (spherical plain bearing with threaded eye)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF SC25ES rod end (spherical plain bearing with threaded eye). Threaded-eye housing with an integrated spherical plain bearing, providing self-alignment on hydraulic-cylinder rod ends, linkage pivots, actuator terminations. Female thread (SI / SIL) or male thread (SA / SAL); left-hand (L suffix) or right-hand thread. Steel-on-steel or steel-on-PTFE-composite raceway. ISO 12240-4 dimensioned.
Technical Specifications
- Type
- Rod end (spherical plain bearing with threaded eye)
- Designation
- SKF SC25ES
- HS code
- 8483.30
- Bore diameter, bearing inner ring
- 25 mm
- Outside diameter, housing eye
- 65 mm
- Width, bearing inner ring
- 20 mm
- Width, housing eye
- 18 mm
- Centre height, housing (from end of shank)
- 45 mm
- Housing length, total
- 78 mm
- Basic dynamic load rating
- 48 kN
- Basic static load rating
- 73.5 kN
- Sliding contact surface combination
- Steel/steel, standard
- Material, housing
- Steel
- Material, inner ring
- Bearing steel
- Material, outer ring
- Bearing steel
- Maintenance
- Relubrication required
- Attachment feature, rod end shank
- Cylindrical section, with locating pin, for welding
- Sealing
- Without
- Product net weight
- 0.46 kg
- eClass code
- 23-05-01-05
- UNSPSC code
- 31171508
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.30
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF SNL3276 SNL 30/31/32 split pillow-block housing
SKF
SKF HMV45/233983 Hydraulic bearing mounting / dismounting tool
SKF
SKF 231X259.7X38DOCV60 Metal face seal (Duo-Cone / mud seal)
SKF

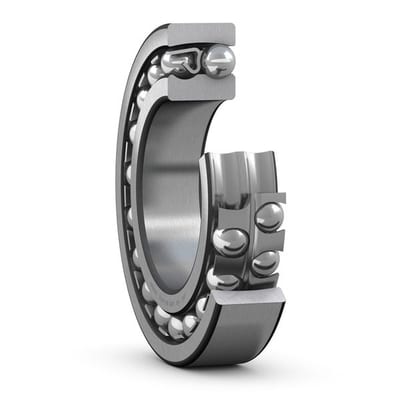

SKF 1315 Self-aligning ball bearing (12XX / 13XX / 22XX)
SKF

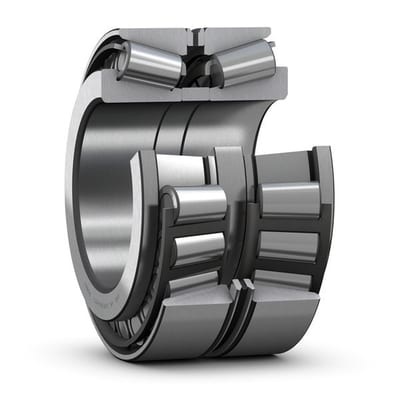

SKF 32048T164X/DBC406 Matched pair / set of tapered roller bearings
SKF

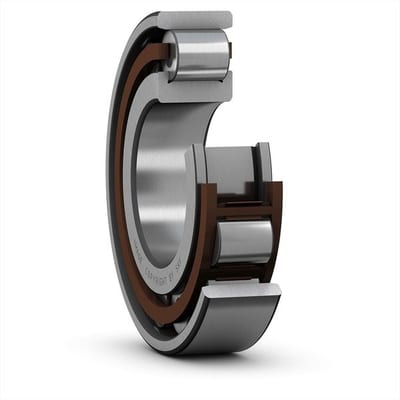

SKF N214ECP Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF

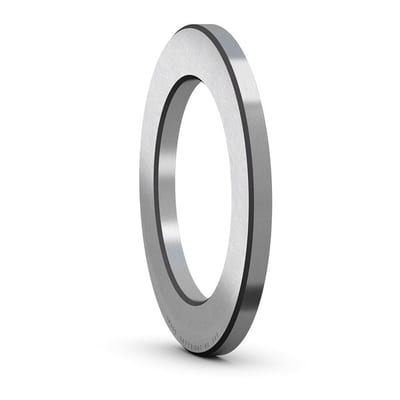

SKF GS81209 Cylindrical roller thrust bearing (81XXX)
SKF

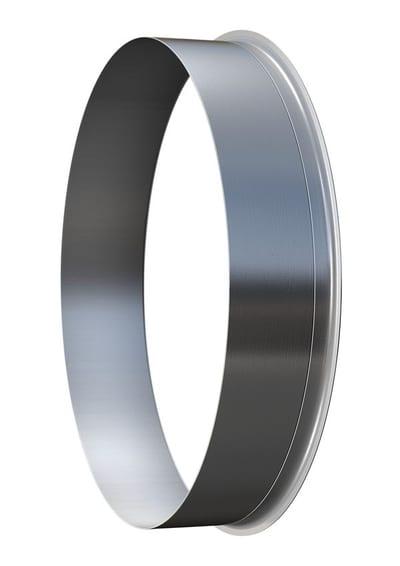

SKF 99273 SKF Speedi-Sleeve shaft wear sleeve
