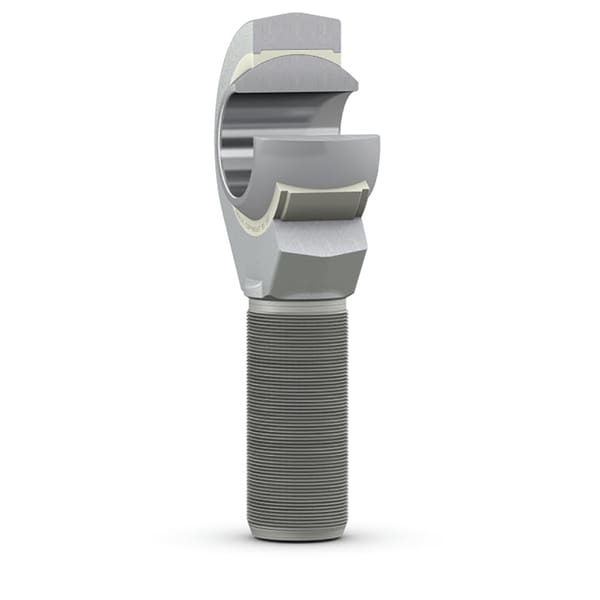

SKF SAKB12F Rod end (spherical plain bearing with threaded eye)

SKF SAKB12F rod end (spherical plain bearing with threaded eye). Threaded-eye housing with an integrated spherical plain bearing, providing self-alignment on hydraulic-cylinder rod ends, linkage pivots, actuator terminations. Female thread (SI / SIL) or male thread (SA / SAL); left-hand (L suffix) or right-hand thread. Steel-on-steel or steel-on-PTFE-composite raceway. ISO 12240-4 dimensioned.

Type

Rod end (spherical plain bearing with threaded eye)

Designation

SKF SAKB12F

HS code

8483.30

Bore diameter, bearing inner ring

12 mm

Outside diameter, housing eye

33 mm

Width, bearing inner ring

16 mm

Thread designation

M 12

Width, housing eye

12.5 mm

Centre height, housing (from end of shank)

54 mm

Housing length, total

72 mm

Basic dynamic load rating

13.2 kN

Basic static load rating

15 kN

Sliding contact surface combination

Steel/PTFE FRP

Material, housing

Steel

Material, inner ring

Bearing steel

Maintenance

Maintenance-free

Attachment feature, rod end shank

Right-hand male thread

Sealing

Without

Product net weight

0.095 kg

eClass code

23-05-01-05

UNSPSC code

31171508

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8483.30
