SKF SAKAC16M Rod end (spherical plain bearing with threaded eye)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF SAKAC16M rod end (spherical plain bearing with threaded eye). Threaded-eye housing with an integrated spherical plain bearing, providing self-alignment on hydraulic-cylinder rod ends, linkage pivots, actuator terminations. Female thread (SI / SIL) or male thread (SA / SAL); left-hand (L suffix) or right-hand thread. Steel-on-steel or steel-on-PTFE-composite raceway. ISO 12240-4 dimensioned.
Technical Specifications
- Type
- Rod end (spherical plain bearing with threaded eye)
- Designation
- SKF SAKAC16M
- HS code
- 8483.30
- Bore diameter, bearing inner ring
- 16 mm
- Outside diameter, housing eye
- 43 mm
- Width, bearing inner ring
- 21 mm
- Thread designation
- M 16
- Width, housing eye
- 15.5 mm
- Centre height, housing (from end of shank)
- 66 mm
- Housing length, total
- 89 mm
- Basic dynamic load rating
- 21.6 kN
- Basic static load rating
- 23.2 kN
- Sliding contact surface combination
- Steel/bronze
- Material, housing
- Steel
- Material, inner ring
- Bearing steel
- Maintenance
- Relubrication required
- Attachment feature, rod end shank
- Right-hand male thread
- Sealing
- Without
- Product net weight
- 0.207 kg
- eClass code
- 23-05-01-05
- UNSPSC code
- 31171508
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.30
Cross References
- Alt. designation SAKAC 16 M
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF SNL3088G SNL 30/31/32 split pillow-block housing
SKF
SKF 729107 Hydraulic bearing mounting / dismounting tool
SKF
SKF 148X170X34DOCR60 Metal face seal (Duo-Cone / mud seal)
SKF
SKF 1212ETN9/C3 Self-aligning ball bearing (12XX / 13XX / 22XX)
SKF
SKF 31318T103/DB31 Matched pair / set of tapered roller bearings
SKF

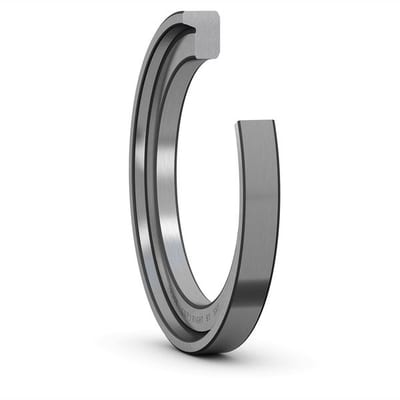

SKF HJ217EC Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF 81208TN Cylindrical roller thrust bearing (81XXX)
SKF

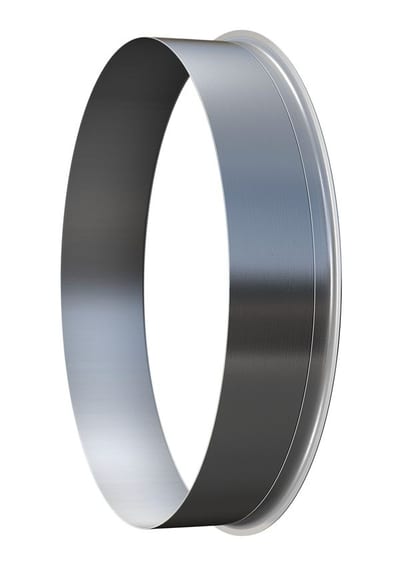

SKF 99147 SKF Speedi-Sleeve shaft wear sleeve
