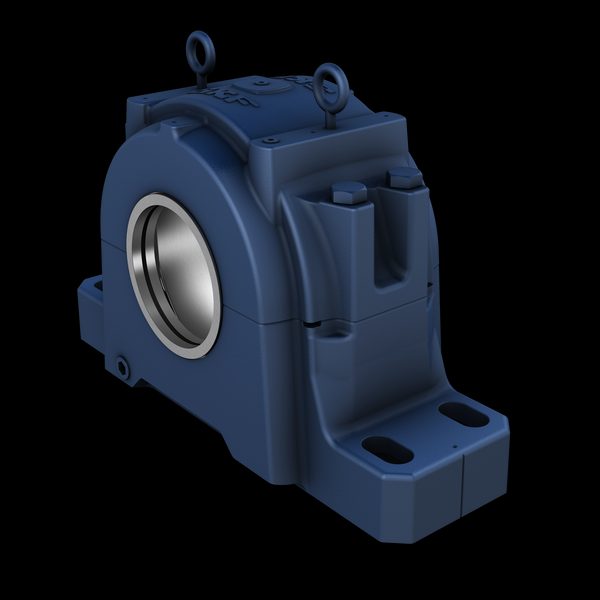

SKF SAF544 Split pillow-block housing (SNL / SAF / SAW)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF SAF544 split pillow-block housing (snl / saf / saw). Two-part split cast-iron pillow-block bearing housing accepting a spherical roller bearing on adapter sleeve. Inch series SAF / SAW / SNL, metric SNL. Standard variants oil-lubricated (SN oil ring), grease-lubricated with regreasing groove, sealed with taconite (TSN), triple-labyrinth (TSN-D) or V-ring closures against moisture and abrasive dust. Suitable for marine deck-machinery, cement mill trunnions, paper-mill rolls.
Technical Specifications
- Type
- Split pillow-block housing (SNL / SAF / SAW)
- Designation
- SKF SAF544
- HS code
- 8483.20
- Diameter of bearing seat
- 400 mm
- Centre height (pillow block)
- 241.3 mm
- Centre distance between bolt holes
- 668.338 mm
- Centre distance between bolt holes (axial direction)
- 133.35 mm
- Attachment bolt diameter
- 38.1 mm
- Housing type
- Pillow block
- Housing configuration
- Two-piece
- Mounting arrangement
- Through shaft/Shaft end
- Number of bolt holes for fasteners
- 4
- Material, housing
- Cast iron
- Bearing housing seal type
- Labyrinth
- Housing lubrication feature/possibility
- Grease/Oil
- Product net weight
- 173 kg
- eClass code
- 23-05-17-01
- UNSPSC code
- 31171519
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.20
Cross References
- Cooper Split 544
- Dodge 544
- Rexnord 544
- Equivalent: 544 (Cooper Split)
- Equivalent: 544 (Dodge)
- Equivalent: 544 (Rexnord)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
