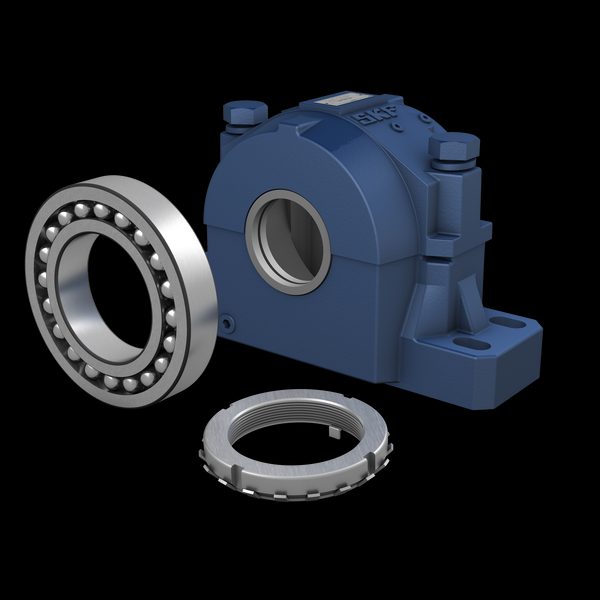

SKF SAF1318 Split pillow-block housing (SNL / SAF / SAW)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF SAF1318 split pillow-block housing (snl / saf / saw). Two-part split cast-iron pillow-block bearing housing accepting a spherical roller bearing on adapter sleeve. Inch series SAF / SAW / SNL, metric SNL. Standard variants oil-lubricated (SN oil ring), grease-lubricated with regreasing groove, sealed with taconite (TSN), triple-labyrinth (TSN-D) or V-ring closures against moisture and abrasive dust. Suitable for marine deck-machinery, cement mill trunnions, paper-mill rolls.
Technical Specifications
- Type
- Split pillow-block housing (SNL / SAF / SAW)
- Designation
- SKF SAF1318
- HS code
- 8483.20
- Width, total
- 174.625 mm
- Centre height (pillow block)
- 120.65 mm
- Centre distance between bolt holes
- 323.85 mm
- Centre distance between bolt holes (axial direction)
- 57.15 mm
- Bore diameter (bearing)
- 90 mm
- Basic dynamic load rating
- 117 kN
- Basic static load rating
- 44 kN
- Limiting speed
- 4500 r/min
- Housing type
- Pillow block
- Housing configuration
- Two-piece
- Mounting arrangement
- Through shaft/shaft end
- Number of bolt holes for fasteners
- 4
- Fastening bolt hole type
- Cast
- Bearing housing seal type
- Labyrinth
- Rolling bearing type
- Self-aligning ball bearing
- Bearing configuration
- With cylindrical bore
- Locating ring
- With
- End cover
- Optional
- Material, housing
- Cast iron
- Relubrication hole
- With
- Grease fitting
- With
- Unit system
- Inch
- Product net weight
- 39.2 kg
- eClass code
- 23-05-16-01
- UNSPSC code
- 31171511
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.20
Cross References
- Cooper Split 1318
- Dodge 1318
- Rexnord 1318
- Equivalent: 1318 (Cooper Split)
- Equivalent: 1318 (Dodge)
- Equivalent: 1318 (Rexnord)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
