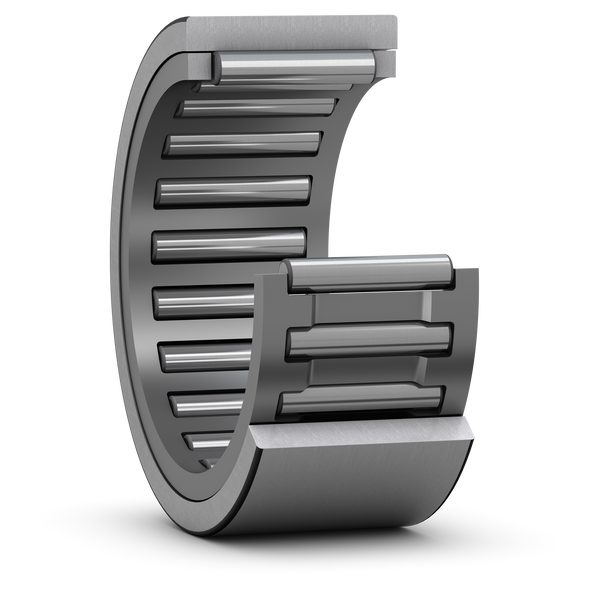

SKF RNAO55X68X20 Needle roller bearing (machined rings)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF RNAO55X68X20 needle roller bearing (machined rings). Needle roller bearing with machined inner and outer rings (NA48xx, NA49xx, NA69xx, RNA48xx, RNA49xx, RNA69xx per ISO 3245 / DIN 617). Ideal for high radial load in the smallest possible radial section — universal-joint yokes, camshaft supports, transmission planetary pinions.
Technical Specifications
- Type
- Needle roller bearing (machined rings)
- Designation
- SKF RNAO55X68X20
- HS code
- 8482.40
- Bore diameter of needle roller complement
- 55 mm
- Outside diameter
- 68 mm
- Width
- 20 mm
- Basic dynamic load rating
- 27 kN
- Basic static load rating
- 67 kN
- Reference speed
- 7500 r/min
- Limiting speed
- 8500 r/min
- Bearing part
- Bearing without inner ring
- Number of rows
- 1
- Outer ring type
- Machined (solid)
- Aligning feature
- Without
- Cage
- Sheet steel
- Number of flanges, outer ring
- 0
- Tolerance class
- Normal
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- Without
- Indicative carbon footprint for new product
- 0.61 kg CO2e
- Product net weight
- 0.166 kg
- eClass code
- 23-05-09-03
- UNSPSC code
- 31171512
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.40
Cross References
- INA 556820
- Torrington / Timken 556820
- IKO 556820
- NTN 556820
- Equivalent: 556820 (INA)
- Equivalent: 556820 (Torrington / Timken)
- Equivalent: 556820 (IKO)
- Equivalent: 556820 (NTN)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF PRM404430 Plain sleeve bushing
SKF
SKF OR177.17X6.99-N70 O-ring / back-up ring
SKF
SKF P4BE300-SRB-SLE Roller-bearing pillow-block unit
SKF
SKF RGR18X21X5.6-PF Hydraulic guide ring / wear ring / bearing strip
SKF
SKF PHC140-1CX10FT Roller chain
SKF
SKF PHFSH-32MM QD (Quick Disconnect) bushing
SKF
SKF PHFTB4030X65MM Taper bushing
SKF
SKF PHG1250-H-300 Timing belt (synchronous drive belt)
Technical guides
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy RNAO55X68X20?
- RNAO55X68X20 can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is RNAO55X68X20.
- What is the HS code for RNAO55X68X20?
- The customs tariff (HS) code for RNAO55X68X20 is 8482.40.
- Who manufactures RNAO55X68X20?
- RNAO55X68X20 is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for RNAO55X68X20?
- Yes — the RNAO55X68X20 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for RNAO55X68X20?
- The minimum order quantity is 1.
- Is RNAO55X68X20 available?
- Yes — RNAO55X68X20 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
