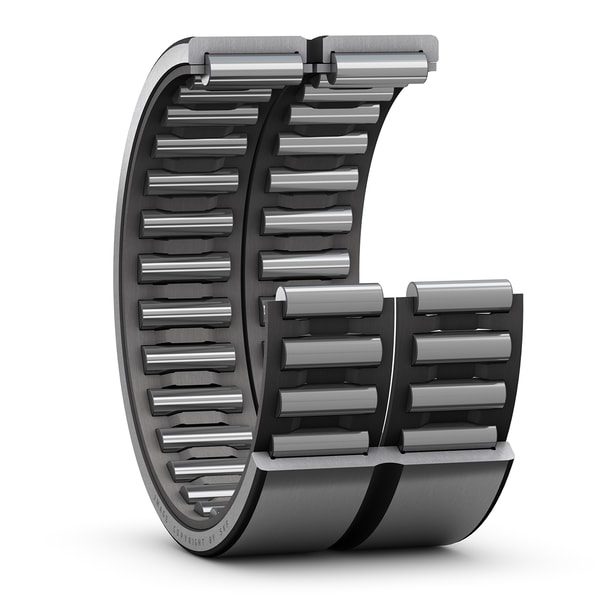

SKF RNA6919 Needle roller bearing (machined rings)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF RNA6919 needle roller bearing (machined rings). Needle roller bearing with machined inner and outer rings (NA48xx, NA49xx, NA69xx, RNA48xx, RNA49xx, RNA69xx per ISO 3245 / DIN 617). Ideal for high radial load in the smallest possible radial section — universal-joint yokes, camshaft supports, transmission planetary pinions.
Technical Specifications
- Type
- Needle roller bearing (machined rings)
- Designation
- SKF RNA6919
- Bore d
- 95 mm
- HS code
- 8482.40
- Bore diameter of needle roller complement
- 110 mm
- Outside diameter
- 130 mm
- Width
- 63 mm
- Basic dynamic load rating
- 172 kN
- Basic static load rating
- 465 kN
- Reference speed
- 3600 r/min
- Limiting speed
- 4000 r/min
- Bearing part
- Bearing without inner ring
- Number of rows
- 2
- Outer ring type
- Machined (solid)
- Aligning feature
- Without
- Cage
- Sheet steel
- Number of flanges, outer ring
- 3
- Tolerance class
- Normal
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- With
- Indicative carbon footprint for new product
- 4.8 kg CO2e
- Product net weight
- 1.31 kg
- eClass code
- 23-05-09-03
- UNSPSC code
- 31171512
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.40
Cross References
- INA 6919
- Torrington / Timken 6919
- IKO 6919
- NTN 6919
- Equivalent: 6919 (INA)
- Equivalent: 6919 (Torrington / Timken)
- Equivalent: 6919 (IKO)
- Equivalent: 6919 (NTN)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
