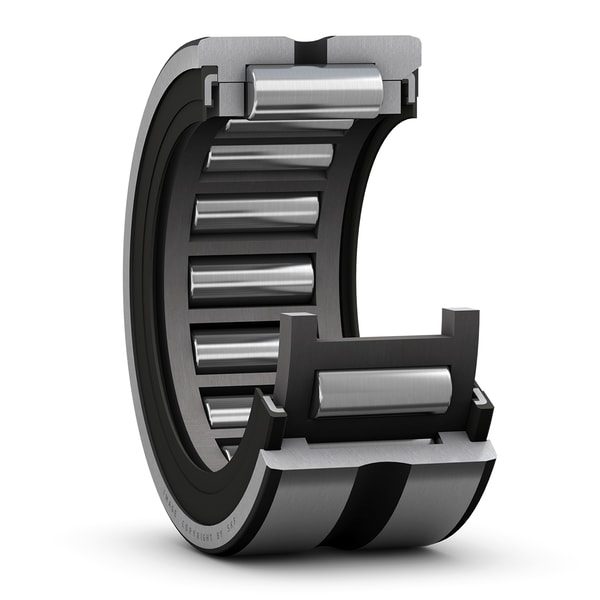

SKF RNA4909.2RS Needle roller bearing (machined rings)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF RNA4909.2RS needle roller bearing (machined rings). Needle roller bearing with machined inner and outer rings (NA48xx, NA49xx, NA69xx, RNA48xx, RNA49xx, RNA69xx per ISO 3245 / DIN 617). Ideal for high radial load in the smallest possible radial section — universal-joint yokes, camshaft supports, transmission planetary pinions.
Technical Specifications
- Type
- Needle roller bearing (machined rings)
- Designation
- SKF RNA4909.2RS
- Bore d
- 45 mm
- HS code
- 8482.40
- Bore diameter of needle roller complement
- 52 mm
- Outside diameter
- 68 mm
- Width
- 22 mm
- Basic dynamic load rating
- 45 kN
- Basic static load rating
- 64 kN
- Reference speed
- 7500 r/min
- Limiting speed
- 3800 r/min
- SKF performance class
- SKF Explorer
- Bearing part
- Bearing without inner ring
- Number of rows
- 1
- Outer ring type
- Machined (solid)
- Aligning feature
- Without
- Cage
- Sheet steel
- Number of flanges, outer ring
- 2
- Tolerance class
- Normal
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Seal on both sides
- Sealing type
- Contact
- Lubricant
- Grease
- Relubrication feature
- With
- Indicative carbon footprint for new product
- 0.67 kg CO2e
- Product net weight
- 0.182 kg
- eClass code
- 23-05-09-03
- UNSPSC code
- 31171512
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.40
Cross References
- INA 49092
- Torrington / Timken 49092
- IKO 49092
- NTN 49092
- Equivalent: 49092 (INA)
- Equivalent: 49092 (Torrington / Timken)
- Equivalent: 49092 (IKO)
- Equivalent: 49092 (NTN)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
